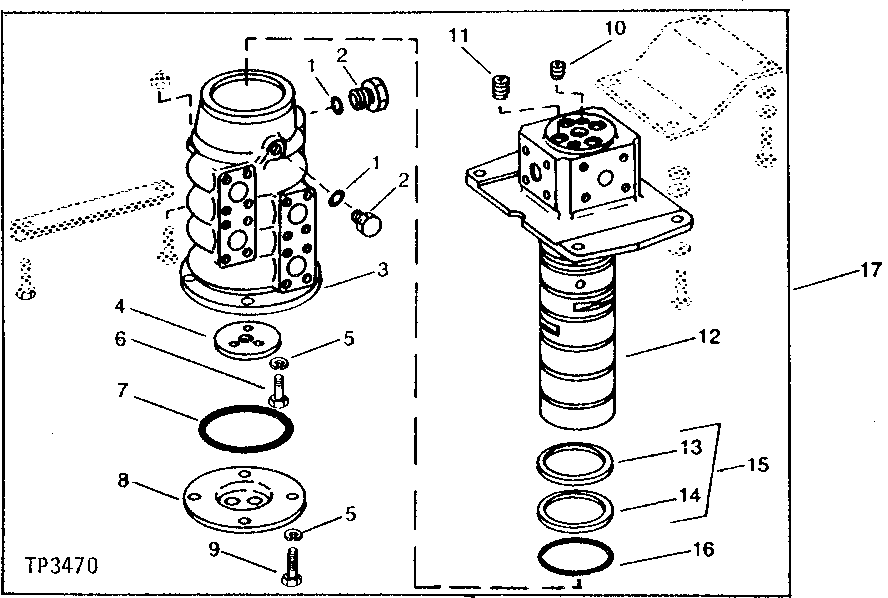

Запчасти John Deere 90A 23 - ROTARY MANIFOLD 260 - UNDERCARRIAGE 2

1

R26448

O-RING

(USE WITH AT68746)

2шт.

2

R27218

FITTING PLUG

(USE WITH AT68746)

2шт.

3

T71754

HYDRAULIC CYLINDER BARREL

(SUB T81101 IF AVAILABLE)

1шт.

4

T40340

WASHER

1шт.

24H1652

WASHER

13/32" X 11/16" X 7/64", (USE WITH AT82136)

4шт.

5

12H304

LOCK WASHER

3/8", (USE WITH AT68746)

7шт.

6

19H2284

CAP SCREW

3/8" X 7/8"

3шт.

7

T38489

O-RING

1шт.

8

T70239

CAP

1шт.

9

19H3239

CAP SCREW

3/8" X 1-1/4"

4шт.

10

15H275

PIPE PLUG

1/4", (USE WITH AT68746)

1шт.

11

15H690

PIPE PLUG

3/4"

4шт.

12

SPINDLE

( T71753 AND T81100 NO LONGER AVAILABLE)

1шт.

13

SEAL

(SUB AT46130) (USE WITH AT68746)

7шт.

WASHER

(USE WITH AT82136)

6шт.

14

SEAL

(SUB AT46130) (USE WITH AT68746)

7шт.

WASHER

(USE WITH AT82136)

6шт.

15

AT46130

SEAL KIT

7шт.

16

A5598R

O-RING

1шт.

17

AT68746

MANIFOLD

(SUB AT82136)

1шт.
