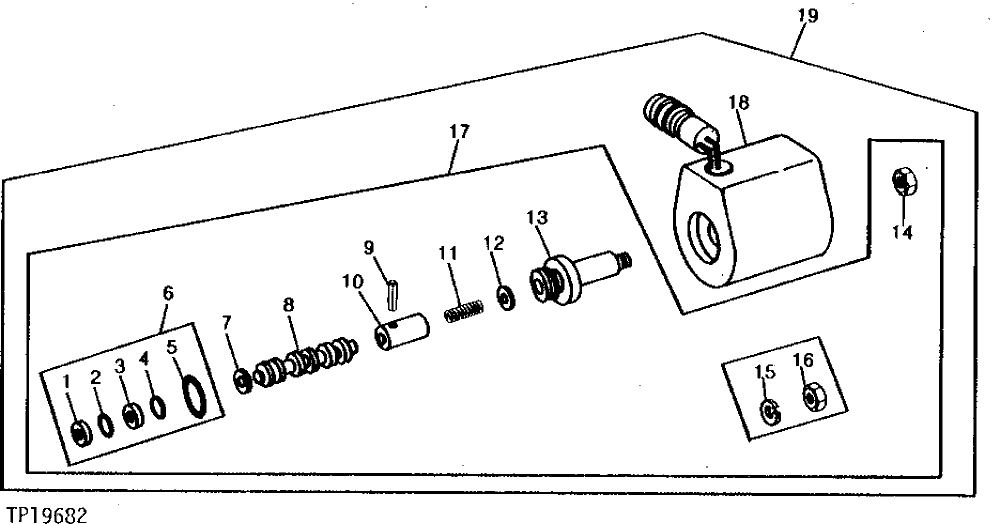

Запчасти John Deere 90A 22 - LOW SPEED SOLENOID VALVE 260 - UNDERCARRIAGE 2

1

R42926

BACK-UP RING

1шт.

2

T40308

O-RING

(SUB FOR H81608, THIS APPLICATION)

1шт.

3

R45187

BACK-UP RING

1шт.

4

R45638

O-RING

1шт.

5

U12547

O-RING

1шт.

6

AT66730

KIT

1шт.

7

SNAP RING

(SUB RE21872 FOR R46701, THIS APPLICATION)

1шт.

8

VALVE SPOOL

(SUB RE21872 FOR AR81176, THIS APPLICATION)

1шт.

9

SPRING PIN

(SUB RE21872 FOR 34H227, THIS APPLICATION)

1шт.

10

PLUNGER

(SUB RE21872 FOR R58884, THIS APPLICATION)

1шт.

11

SPRING

(SUB RE21872 FOR R64698, THIS APPLICATION)

1шт.

12

SHIM

(SUB RE21872 FOR R64697, THIS APPLICATION)

1шт.

13

GUIDE

(SUB RE21872 FOR AR48903, THIS APPLICATION)

1шт.

14

M63707

LOCK NUT

1шт.

15

12H297

LOCK WASHER

1/4", (SUB M63707, THIS APPLICATION)

1шт.

16

14H786

NUT

1/4", (SUB M63707, THIS APPLICATION)

1шт.

17

VALVE

(SUB RE21872)

1шт.

18

ELECTRICAL COIL

(SUB RE22400 FOR AT67970, THIS APPLICATION)

1шт.

19

SOLENOID VALVE

(SUB RE22399 FOR AT66691)

1шт.
