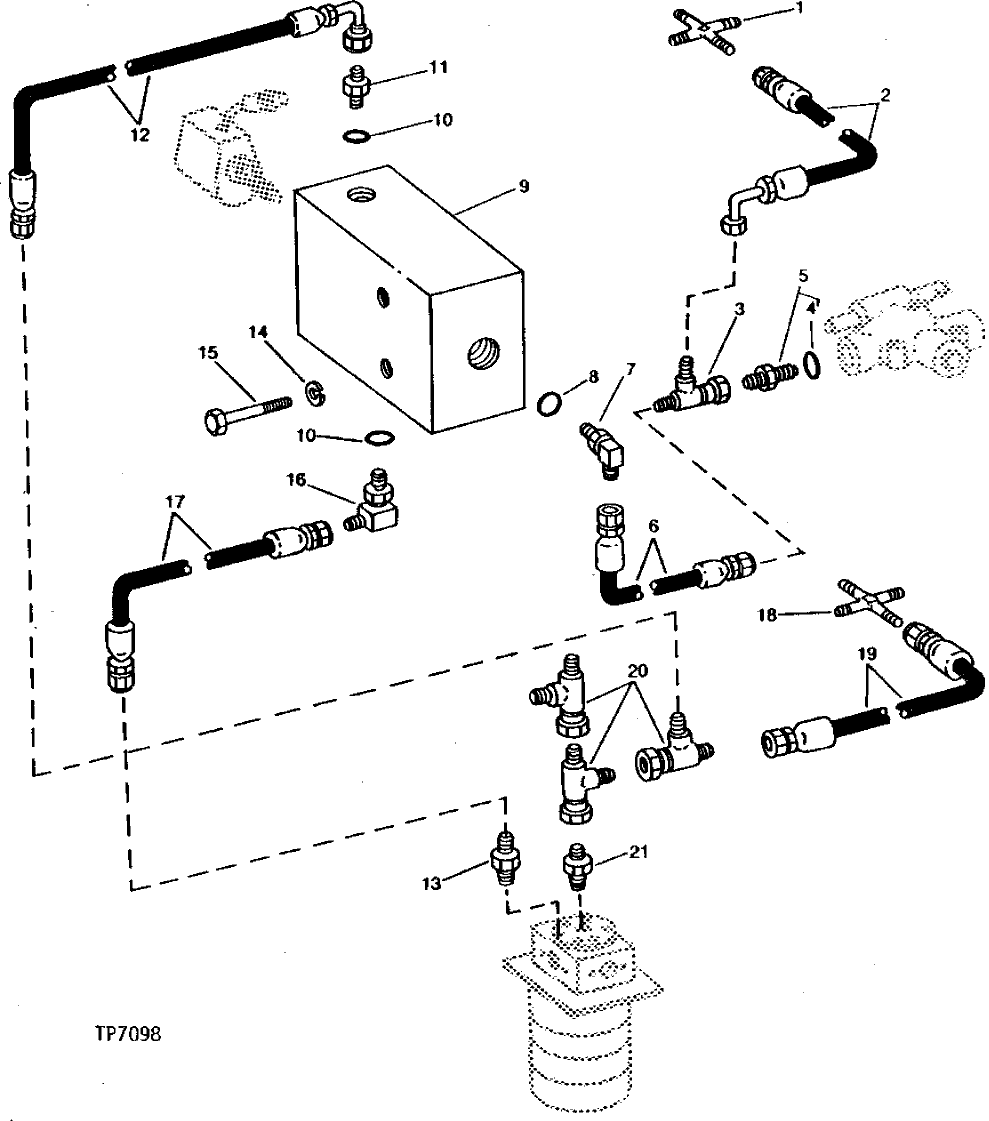

Запчасти John Deere 90A 20 - LOW SPEED CONTROL VALVE CIRCUIT 260 - UNDERCARRIAGE 2

1

T71870

UNION FITTING

1шт.

2

AT68900

HYDRAULIC HOSE - FABRICATE

9/16" X 1 473 MM (58") X 9/16"

1шт.

3

AT36921

TEE FITTING

1шт.

4

R26286

O-RING

1шт.

5

AM31805

FITTING

1шт.

6

AT37051

HYDRAULIC HOSE - FABRICATE

9/16" X 711 MM (28") X 9/16"

1шт.

7

AR31674

FITTING

1шт.

8

R47150

O-RING

1шт.

9

T107202

HOUSING

(SUB FOR T72713 AND T78580 ALONG WITH (2) 24M7055)

1шт.

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

10

T70177

O-RING

2шт.

11

R39249

ADAPTER FITTING

1шт.

12

AT48430

HYDRAULIC HOSE - FABRICATE

3/4" X 866 MM (34") X 3/4"

1шт.

13

R26892

FITTING

1шт.

14

12H304

LOCK WASHER

3/8"

2шт.

15

19H3031

CAP SCREW

3/8" X 2-1/2"

2шт.

16

AT35121

ELBOW FITTING

1шт.

17

AT48433

HYDRAULIC HOSE - FABRICATE

9/16" X 838 MM (33") X 9/16"

1шт.

18

T72256

UNION FITTING

1шт.

19

AT69352

HYDRAULIC HOSE - FABRICATE

3/4" X 1 350 MM (53-1/4") X 3/4"

1шт.

20

AN33434

TEE FITTING

(SUB FOR AT43681, THIS APPLICATION)

3шт.

21

N111876

ADAPTER FITTING

1шт.
