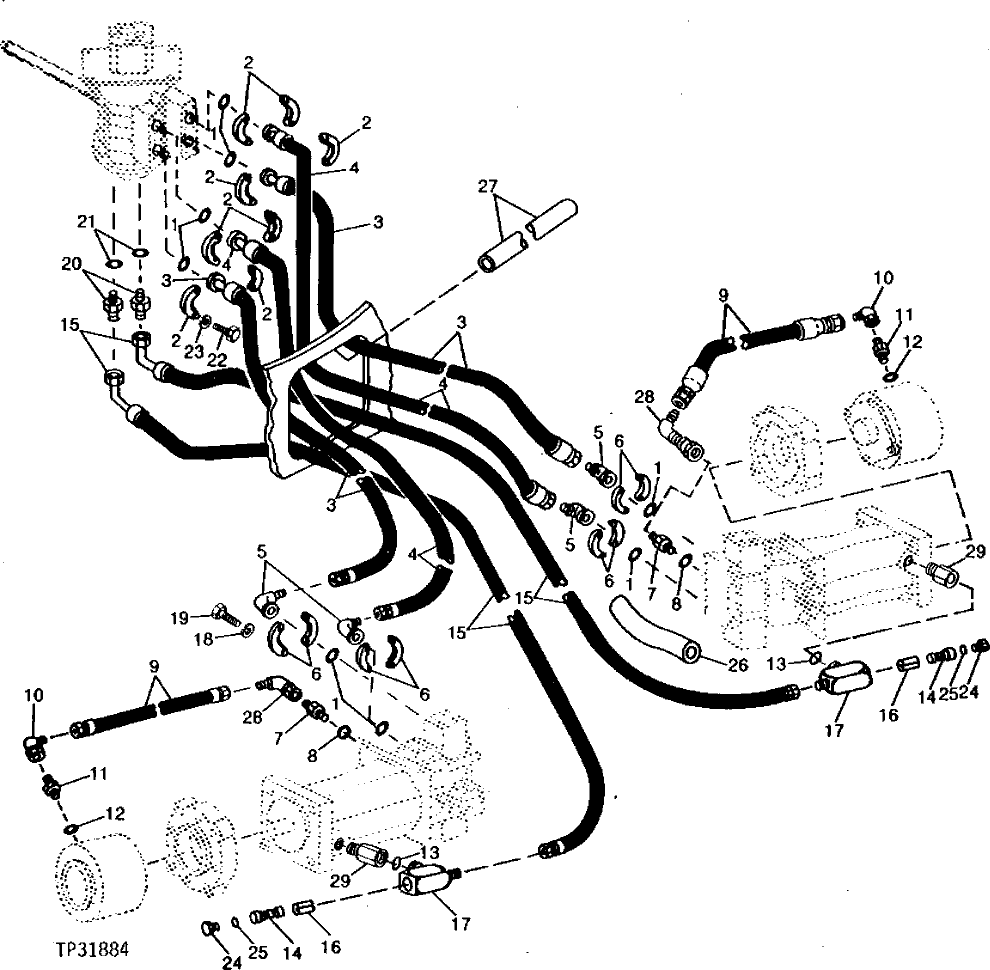

Запчасти John Deere 90A 16 - UNDERCARRIAGE HYDRAULICS 260 - UNDERCARRIAGE 2

1

T72216

O-RING

8шт.

2

R29867

FLANGE FITTING

8шт.

3

AT69323

HYDRAULIC HOSE

1-1/4" X 1 372 MM (54") X 1-5/8", (SUB AT85195) (ALSO ORDER (2) T81202)

2шт.

4

AT69714

HYDRAULIC HOSE

1-1/4" X 1 423 MM (56") X 1-5/8", (SUB AT85195) (ALSO ORDER (2) T81202)

2шт.

5

AT69713

ADAPTER FITTING

(SUB AT81595 AND (2) T81202)

4шт.

6

AT131685

FLANGE FITTING

(SUB FOR T72217)

8шт.

7

R27212

FITTING

2шт.

8

T70177

O-RING

2шт.

9

AT69325

HYDRAULIC HOSE - FABRICATE

9/16" X 711 MM (28") X 9/16", 711 MM LONG (9/16" X 28")

2шт.

10

AE24616

ELBOW FITTING

(SUB FOR AR67586)

2шт.

11

AT74884

CHECK VALVE

(SUB FOR AT71564)

2шт.

12

R28782

O-RING

2шт.

13

R47151

O-RING

2шт.

14

R64818

PLUG

2шт.

15

AT69326

HYDRAULIC HOSE - FABRICATE

2 210 MM LONG (3/4" X 7/8" X 87")

2шт.

16

R67916

SCREEN

2шт.

17

AR78077

TEE FITTING

2шт.

18

12H301

LOCK WASHER

1/2"

16шт.

19

19H2473

CAP SCREW

1/2" X 1-3/4"

16шт.

20

R27237

FITTING

2шт.

21

R47150

O-RING

2шт.

22

19H3205

CAP SCREW

7/16" X 1-1/2"

16шт.

23

12H293

LOCK WASHER

7/16"

16шт.

24

R27175

DRAIN PLUG

2шт.

25

R47157

O-RING

2шт.

26

ISOLATOR

(MAKE FROM T68940 BULK MATERIAL, CUT TO LENGTH)

2шт.

27

ISOLATOR

(MAKE FROM T68940 BULK MATERIAL, CUT TO LENGTH) (CUT IN 4 PIECES)

1шт.

28

AU43156

ELBOW FITTING

45°

2шт.

29

T74543

ADAPTER FITTING

2шт.
