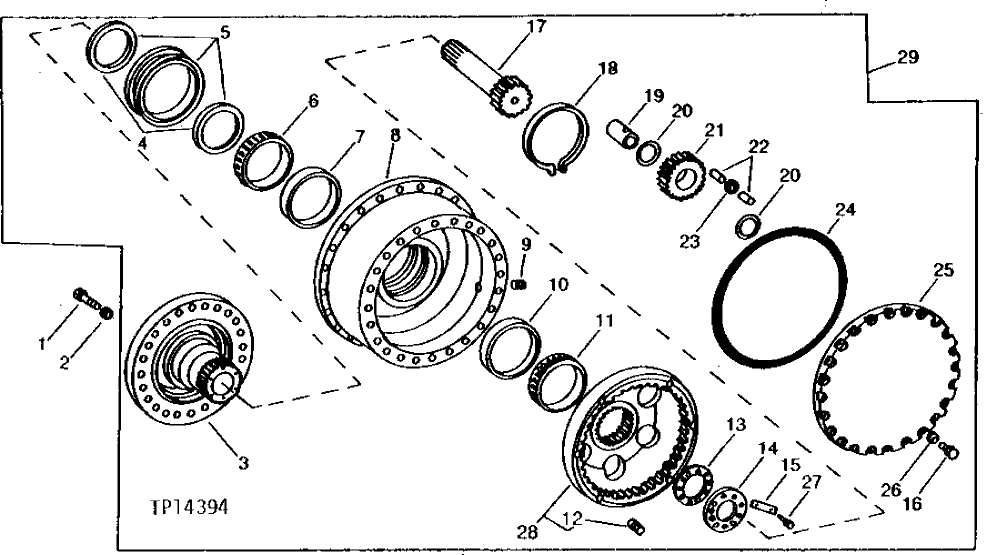

Запчасти John Deere 90A 4 - PLANETARY DRIVE 250 - UNDERCARRIAGE 2

1

19H2826

CAP SCREW

HS, SAE 8, 3/4" X 4-1/2"

21шт.

19H2725

CAP SCREW

HS, SAE 8, 3/4" X 3-3/4"

2шт.

2

T10510

WASHER

(USE IF AVAILABLE)

23шт.

R78019

WASHER

(SUB FOR T10510)

23шт.

3

T74971

HOUSING

1шт.

4

AT61856

SEAL

(CONTAINS TWO RUBBER RINGS) (CHICAGO RAWHIDE)

1шт.

5

AT61855

SEAL

(SEAL KIT) (SEAL CONTAINS AT61856 RING SEAL)

1шт.

6

JD9093

BEARING CONE

1шт.

7

JD9148

BEARING CUP

1шт.

8

HUB

( T47273 USE IF AVAILABLE)

1шт.

9

U17027

FITTING

1шт.

10

JD9149

BEARING CUP

1шт.

11

JD9094

BEARING CONE

1шт.

12

R53578

QUICK LOCK PIN

1шт.

13

SHIM

(A) 0.51 MM (.020") ( T74972 NO LONGER AVAILABLE)

ARшт.

SHIM

(A) 0.18 MM (.007") ( T74973 NO LONGER AVAILABLE)

ARшт.

SHIM

(A) 0.13 MM (.005") ( T74974 NO LONGER AVAILABLE)

ARшт.

14

T74975

WHEEL CENTER

1шт.

15

T74976

STRAP

5шт.

16

19H2706

CAP SCREW

HS, SAE 8, 5/8" X 2"

23шт.

17

T74948

SUN GEAR

(35 TEETH)

1шт.

18

R57055

SNAP RING

1шт.

19

R63114

SHAFT

3шт.

20

R46973

THRUST WASHER

6шт.

21

R51965

PINION

3шт.

22

R55081

NEEDLE ROLLER

150шт.

23

R55082

WASHER

3шт.

24

T47281

O-RING

1шт.

25

T47280

PLANET PINION CARRIER

1шт.

26

24M7241

WASHER

17 X 34 X 4 MM, (SUB FOR T40728)

23шт.

27

19H2473

CAP SCREW

HS, SAE 8, 1/2" X 1-3/4"

10шт.

28

AT72546

PLANET PINION CARRIER

1шт.

29

AT72545

DRIVE

1шт.
