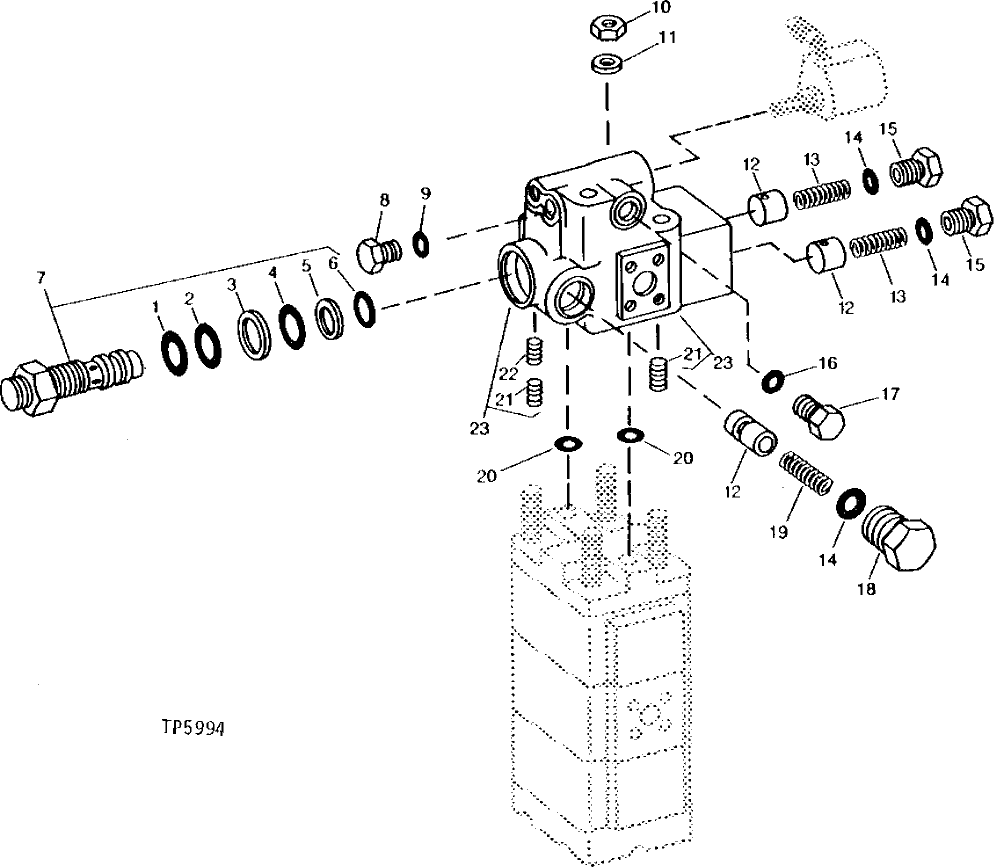

Запчасти John Deere 90A 6 - CROSSOVER RELIEF VALVE 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

R1138R

O-RING

1шт.

2

R495R

O-RING

1шт.

3

T27963

BACK-UP RING

1шт.

4

T59052

O-RING

1шт.

5

T45432

BACK-UP RING

1шт.

6

U11061

O-RING

1шт.

7

AT55786

PRESSURE RELIEF VALVE

1шт.

8

R27218

FITTING PLUG

1шт.

9

T70177

O-RING

1шт.

10

14H1039

NUT

5/8"

4шт.

11

R70268

WASHER

(SUB FOR (4) R42363)

4шт.

12

T42733

POPPET

4шт.

13

T57932

SPRING

2шт.

14

R1138R

O-RING

34.519 X 3.531 MM (1-23/64" X 0.139") (SUB FOR N131820, THIS APPLICATION)

3шт.

15

T57931

PIPE PLUG

2шт.

16

U12547

O-RING

(SUB FOR F3171R)

1шт.

17

R27175

DRAIN PLUG

1шт.

18

T42732

RETAINER

2шт.

19

T42731

SPRING

2шт.

20

T72216

O-RING

2шт.

21

15H275

PIPE PLUG

1/4"

2шт.

22

T29437

ORIFICE

1шт.

23

AT55975

RELIEF VALVE

(MARKED T58256)

1шт.
