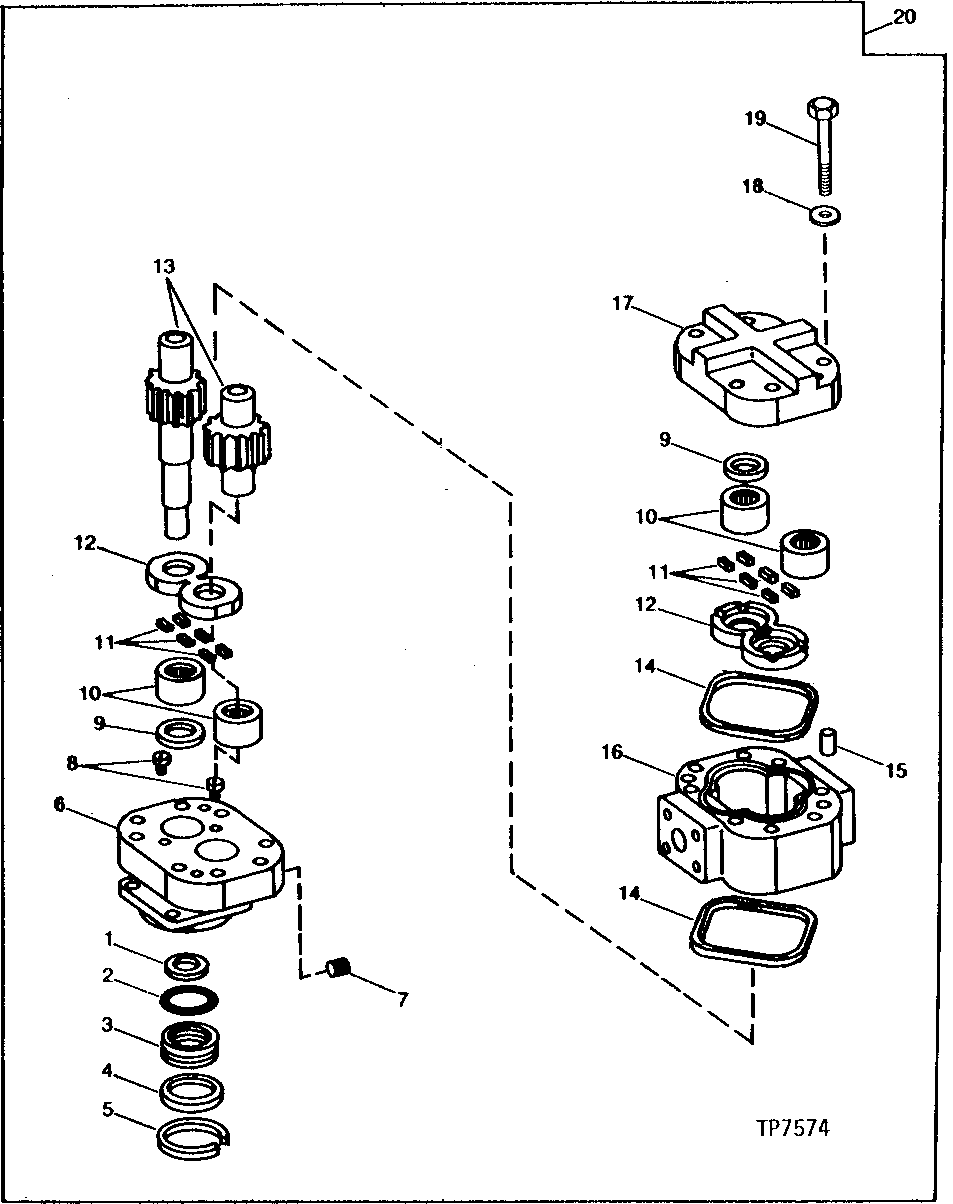

Запчасти John Deere 90A 3A - REAR SWING MOTOR 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

T42539

SEAL

(K)

1шт.

2

T42540

O-RING

(K)

1шт.

3

T42541

RETAINER

1шт.

4

T42538

SPACER

1шт.

5

N71921

SNAP RING

1шт.

6

END

( T42543 NO LONGER AVAILABLE)

1шт.

7

15H604

PIPE PLUG

1/4"

1шт.

8

AT41495

CHECK VALVE

2шт.

9

T42534

WEAR RING

(K)

2шт.

10

R39630

CYLINDRICAL ROLLER BEARING

4шт.

11

T42531

ISOLATOR

(K) (CUT TO LENGTH)

2шт.

12

T42532

PLATE

4шт.

13

GEAR

( AT74199 NO LONGER AVAILABLE)

1шт.

14

T42530

WASHER

(K)

2шт.

15

T42525

DOWEL PIN

4шт.

16

HOUSING

( T76044 NO LONGER AVAILABLE)

1шт.

17

T42537

END PLATE

1шт.

18

R70268

WASHER

(SUB FOR R42363)

4шт.

19

19H3185

CAP SCREW

HS, SAE 8, 5/8" X 5-3/4"

4шт.

20

AT71784

MOTOR

1шт.
