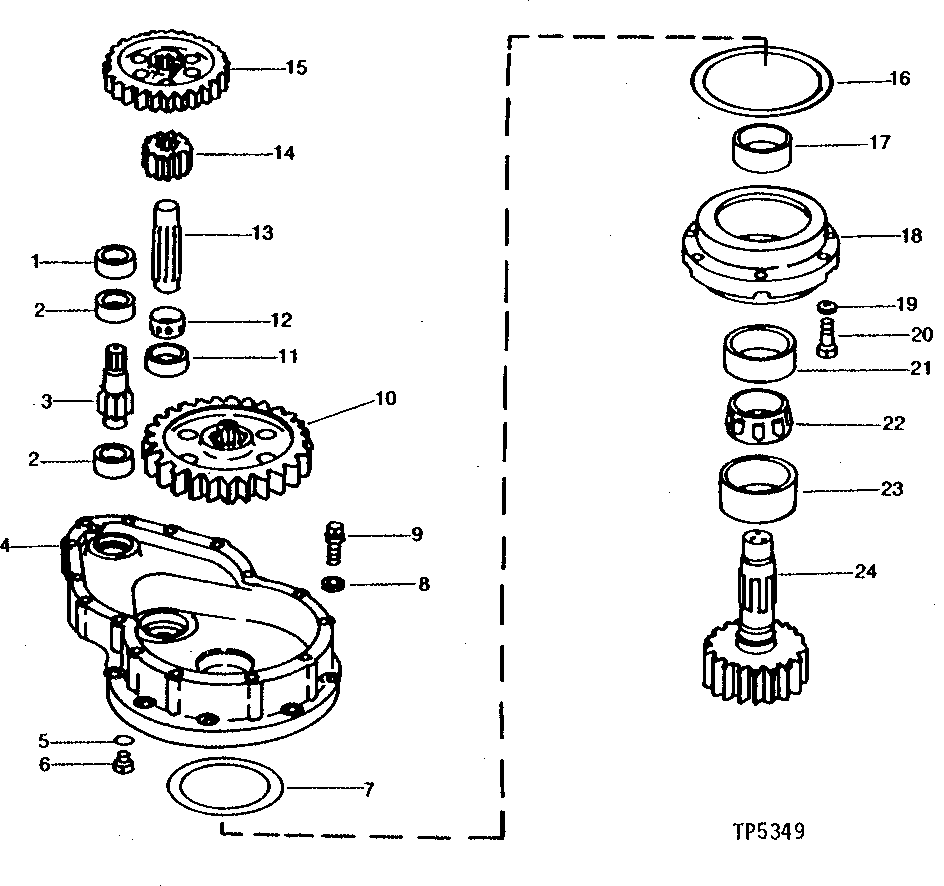

Запчасти John Deere 90A 2 - SWING GEARBOX CASE 4350 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

AT40603

SEAL

1шт.

2

JD7682

BALL BEARING

2шт.

3

T47029

GEAR

INPUT (12 TEETH)

1шт.

4

T39401

GEAR CASE

REAR (USE IF AVAILABLE)

1шт.

5

R26286

O-RING

1шт.

6

R27094

DRAIN PLUG

1шт.

7

T39414

O-RING

1шт.

8

T76630

WASHER

18шт.

9

T40256

SCREW

18шт.

10

T40691

GEAR

FINAL DRIVE (56 TEETH)

1шт.

11

JD8223

BEARING CUP

1шт.

12

JD9027

BEARING CONE

1шт.

13

T39405

SHAFT

INTERMEDIATE

1шт.

14

T24862

PINION

FINAL DRIVE

1шт.

15

T40533

GEAR

INTERMEDIATE (45 TEETH)

1шт.

16

R37287

O-RING

1шт.

17

T40692

BUSHING

1шт.

18

T39413

BEARING HOUSING W/O BEARING

1шт.

19

24H1341

WASHER

17/32" X 15/16" X 0.060"

6шт.

20

19H1004

CAP SCREW

1/2" X 2-1/4"

6шт.

21

JD9134

BEARING CUP

1шт.

22

JD9077

BEARING CONE

1шт.

23

AT53802

SEAL

1шт.

24

T47357

GEAR

SWING PINION (27 TEETH)

1шт.
