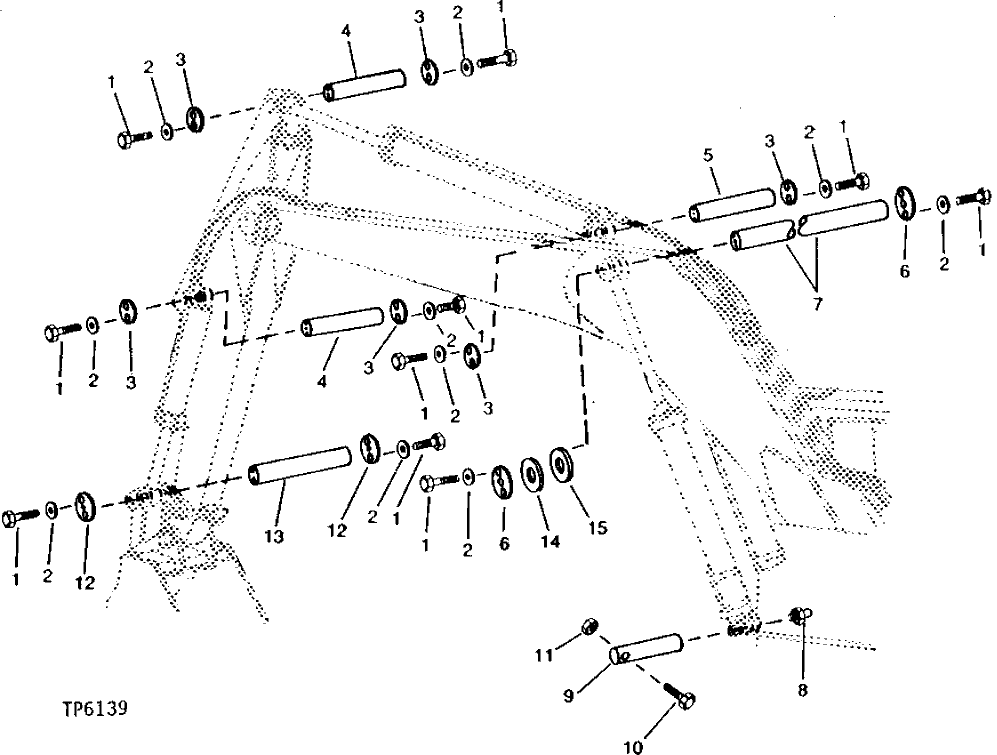

Запчасти John Deere 90A 64 - BOOM, BUCKET AND CROWD CYLINDER PINS 3360 - EXCAVATOR 33

1

T55579

BOLT

16шт.

2

T17776

WASHER

16шт.

3

T48400

RETAINER

6шт.

4

T48909

PIN

2шт.

5

T48946

PIN

1шт.

6

T48908

RETAINER

2шт.

7

T48907

PIN FASTENER

1шт.

8

JD7759

LUBRICATION FITTING

1/8", STRAIGHT (L.H. CYLINDER)

1шт.

JD7781

LUBRICATION FITTING

1/8", 90° (NOT ILLUSTRATED) (R.H. CYLINDER)

1шт.

9

T48911

PIN FASTENER

2шт.

10

08H4428

CAP SCREW

1" X 7-1/2"

2шт.

11

14H1048

NUT

1"

2шт.

12

T47160

RETAINER

2шт.

13

T72104

PIN

1шт.

14

T54189

THRUST WASHER

ARшт.

15

T54192

WASHER

ARшт.
