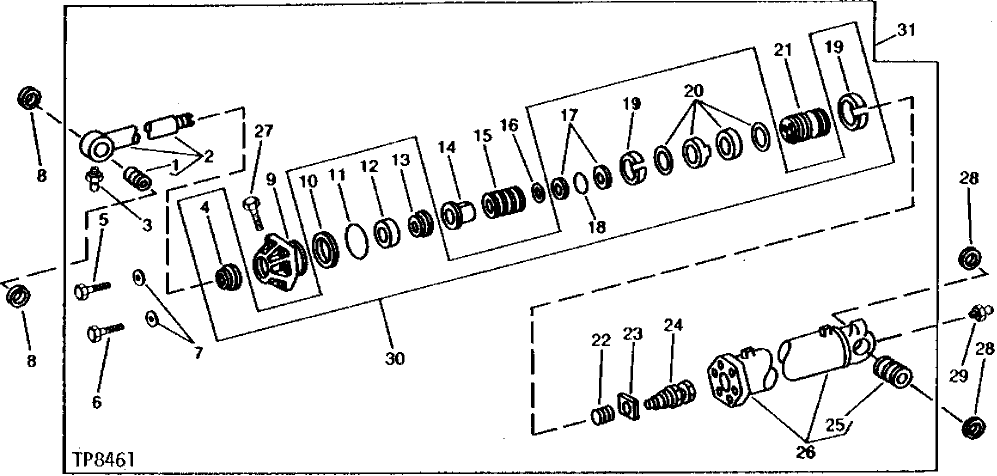

Запчасти John Deere 90A 58 - BUCKET CYLINDER 3360 - EXCAVATOR 33

1

R77569

BUSHING

1шт.

2

AR102094

ROD

1шт.

3

JD7759

LUBRICATION FITTING

1/8"

1шт.

4

T46617

SEAL

(RK)

1шт.

5

19H3313

CAP SCREW

1" X 4-1/2"

4шт.

6

19H3314

SCREW

1" X 5-1/4"

2шт.

7

T30636

WASHER

6шт.

8

T72099

SEAL

2шт.

9

R76934

HYDR. CYLINDER ROD GUIDE

1шт.

10

R78810

BACK-UP RING

(BK) (SUB FOR R76901)

1шт.

11

R76900

O-RING

(BK)

1шт.

12

T46618

WEAR RING

(RK)

1шт.

13

R76773

SEAL

(RK)

1шт.

14

T57334

BUSHING

1шт.

15

T46626

SPRING

1шт.

16

T46629

WEAR RING

1шт.

17

R78808

BACK-UP RING

(RK) (SUB FOR T59925)

2шт.

18

T59924

RING

(RK)

1шт.

19

R76907

WEAR RING

(BK)

2шт.

20

RE10023

SEAL

(BK)

1шт.

21

R76935

PISTON

1шт.

22

T58997

SPRING

1шт.

23

T57335

STRAP

1шт.

24

AT56647

POPPET

1шт.

25

T46610

BUSHING

1шт.

26

AR105673

HYDRAULIC CYLINDER BARREL

1шт.

27

19H1895

CAP SCREW

1/2" X 3/4"

2шт.

28

T46611

SEAL

2шт.

29

JD7759

LUBRICATION FITTING

1/8", STRAIGHT (SUB FOR JD7781, 1/8", 90°, THIS APPLICATION)

1шт.

30

AR105677

KIT

(SUB RE14032 ROD REPAIR AND RE14035 BORE REPAIR)

1шт.

31

AR105672

HYDRAULIC CYLINDER

(SUB RE21212)

1шт.
