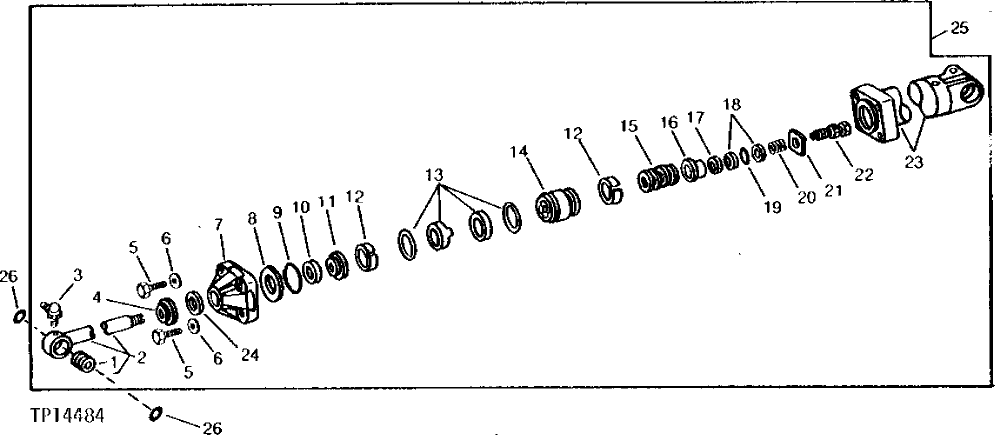

Запчасти John Deere 90A 57 - REPLACEMENT BOOM CYLINDER 3360 - EXCAVATOR 33

1

T46634

BUSHING

1шт.

2

AR92237

ROD

1шт.

3

JD7781

LUBRICATION FITTING

1/8"

1шт.

4

RE21204

SEAL

(RK)

1шт.

5

19H3556

CAP SCREW

HS, SAE 8, 1" X 4-1/4"

4шт.

6

T30636

WASHER

4шт.

7

R82287

HYDR. CYLINDER ROD GUIDE

1шт.

8

R78810

BACK-UP RING

(RK)

1шт.

9

R76900

O-RING

(BK)

1шт.

10

R83321

WEAR RING

(RK)

1шт.

11

RE21206

SEAL

(RK)

1шт.

12

R76907

WEAR RING

(BK)

1шт.

13

RE10023

SEAL

(BK) PISTON ASSEMBLY

1шт.

14

R76906

PISTON

1шт.

15

T46645

SPRING

1шт.

16

T46644

POPPET

1шт.

17

T46646

WEAR RING

BRAKE

1шт.

18

R78809

BACK-UP RING

(RK)

2шт.

19

A5598R

O-RING

(RK)

1шт.

20

T57337

SPRING

1шт.

21

T57336

STRAP

1шт.

22

AT45320

POPPET

1шт.

23

AR105638

HYDRAULIC CYLINDER BARREL

WITH HEAD AND FLANGE

1шт.

24

RE21205

SEAL

(RK)

1шт.

25

RE21210

HYDRAULIC CYLINDER

1шт.

26

T46635

SEAL

2шт.
