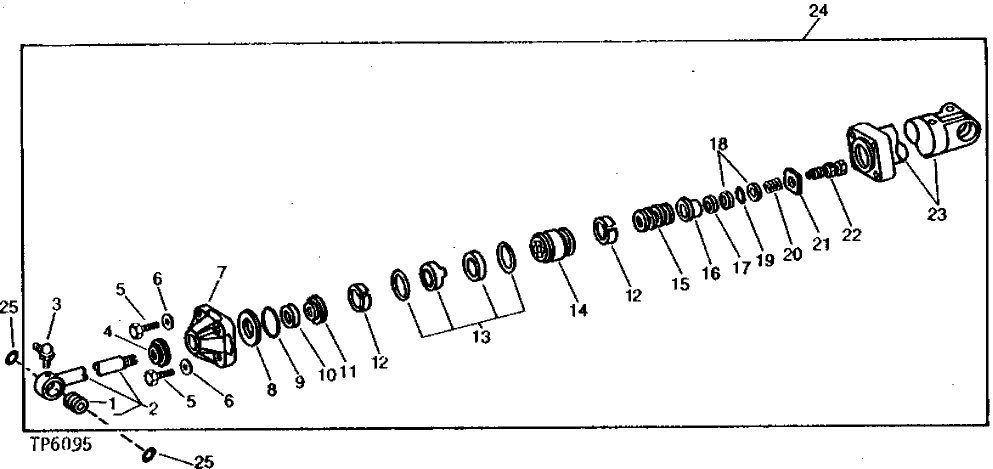

Запчасти John Deere 90A 56 - BOOM CYLINDER 3360 - EXCAVATOR 33

1

T46634

BUSHING

1шт.

2

AR92237

ROD

1шт.

3

JD7781

LUBRICATION FITTING

1/8"

1шт.

4

T46639

SEAL

(RK)

1шт.

5

19H3556

CAP SCREW

HS, SAE 8, 1" X 4-/4"

4шт.

6

T30636

WASHER

4шт.

7

R76902

GUIDE

1шт.

8

R78810

BACK-UP RING

(BK) ROD GUIDE TO BARREL, (SUB FOR R76901)

1шт.

9

R76900

O-RING

(BK) ROD GUIDE TO BARREL

1шт.

10

T46640

WEAR RING

(RK)

1шт.

11

T48355

SEAL

(RK)

1шт.

12

R76907

WEAR RING

(BK)

1шт.

13

RE10023

SEAL

(BK) PISTON ASSEMBLY

1шт.

14

R76906

PISTON

1шт.

15

T46645

SPRING

1шт.

16

T46644

POPPET

1шт.

17

T46646

WEAR RING

BRAKE

1шт.

18

R78809

BACK-UP RING

(RK) (SUB FOR T42032, THIS APPLICATION)

2шт.

19

A5598R

O-RING

(RK)

1шт.

20

T57337

SPRING

1шт.

21

T57336

STRAP

1шт.

22

AT45320

POPPET

1шт.

23

AR105638

HYDRAULIC CYLINDER BARREL

WITH HEAD AND FLANGE

1шт.

24

AR105637

HYDRAULIC CYLINDER

(SUB RE21210)

1шт.

25

T46635

SEAL

2шт.
