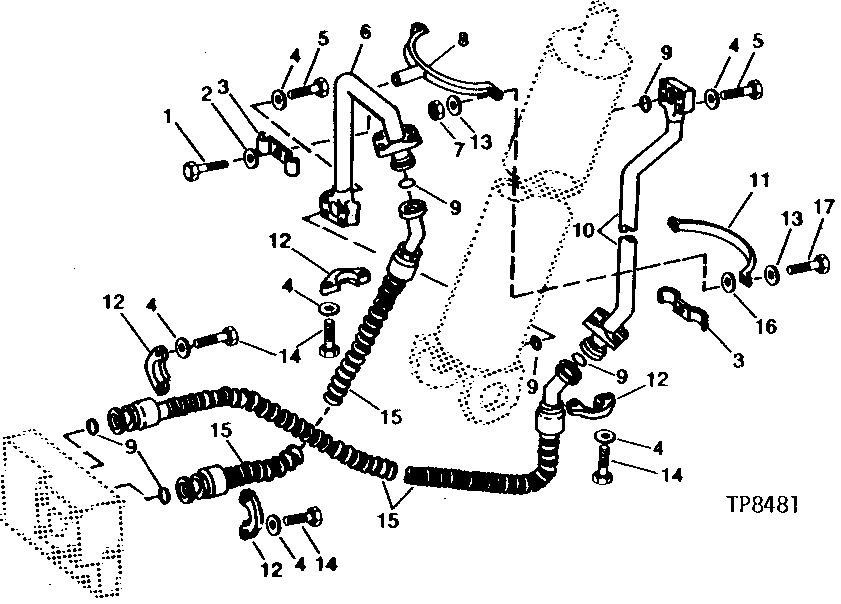

Запчасти John Deere 90A 54 - JUNCTION BLOCK TO BOOM CYLINDERS HYDRAULICS 3360 - EXCAVATOR 33

1

19H2473

CAP SCREW

1/2" X 1-3/4"

2шт.

2

12H301

LOCK WASHER

1/2"

2шт.

3

T52685

CLAMP

4шт.

4

12H293

LOCK WASHER

7/16"

48шт.

5

19H2106

CAP SCREW

7/16" X 2-3/4"

16шт.

6

AT46580

TUBE

R.H. CYLINDER

1шт.

AT46582

OIL LINE

L.H. CYLINDER

1шт.

7

K40014

LOCK NUT

(SUB FOR BP12214, THIS APPLICATION)

4шт.

8

AT71206

CLAMP

2шт.

9

T72216

O-RING

12шт.

10

AT46581

LINE

R.H. CYLINDER

1шт.

AT46583

OIL LINE

L.H. CYLINDER

1шт.

11

T66941

CLAMP

2шт.

12

R29867

FLANGE FITTING

16шт.

13

T35025

WASHER

8шт.

14

19H3205

CAP SCREW

7/16" X 1-1/2"

32шт.

15

AT46579

HYDRAULIC HOSE - FABRICATE

4шт.

16

24H1211

WASHER

9/16" X 1-3/8" X 0.105"

20шт.

17

19H1004

CAP SCREW

1/2" X 2-1/4"

4шт.
