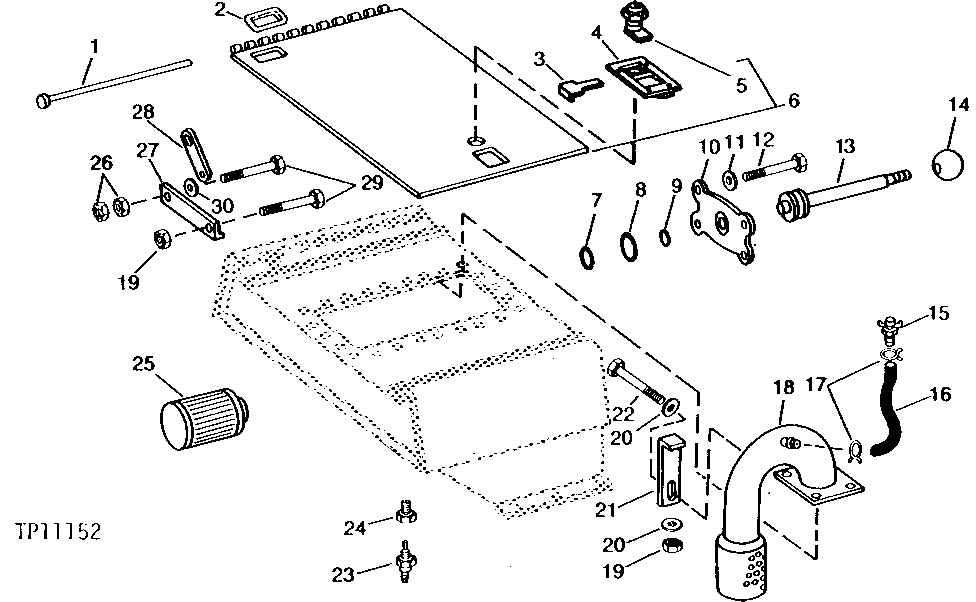

Запчасти John Deere 90A 49 - HYDRAULIC RESERVOIR COVER, FILTER AND SENDING UNIT 3360 - EXCAVATOR 33

1

T40248

PIN FASTENER

1шт.

2

R20759

GROMMET

1шт.

3

T63640

LOCK

1шт.

4

AT55843

HANDLE

1шт.

5

AT55844

LOCK

1шт.

6

AT45807

COVER

1шт.

7

L2027CU

O-RING

2шт.

8

R86192

O-RING

(SUB FOR U12331)

2шт.

9

H36256

O-RING

2шт.

10

T68197

FLANGE

2шт.

11

12H301

LOCK WASHER

1/2"

8шт.

12

19H2993

CAP SCREW

1/2" X 1-1/2"

8шт.

13

AT62826

PISTON

WITH ROD

2шт.

14

M526T

KNOB

2шт.

15

AT13740

DRAIN VALVE

1шт.

16

HOSE

550 MM LONG (5/16" X 22") (MAKE FROM TY22324) (SUB FOR T29698, T67166 AND T79478)

1шт.

17

R34766

CLAMP

2шт.

18

AT45803

DIFFUSER

1шт.

19

14H812

NUT

3/8"

2шт.

20

24H1219

WASHER

7/16" X 1" X 0.083"

2шт.

21

T55243

ANGLE

1шт.

22

T27895

CAP SCREW

1шт.

23

AT37368

SENDER

1шт.

24

15H589

PIPE BUSHING

1/2", (SUB FOR T51917)

1шт.

25

AT32408

FILTER

2шт.

26

14H732

NUT

3/8"

3шт.

27

T49195

ANGLE

1шт.

28

T49196

LINK

1шт.

29

19H3239

CAP SCREW

3/8" X 1-1/4"

3шт.

30

24H1305

WASHER

13/32" X 13/16" X 0.065"

1шт.
