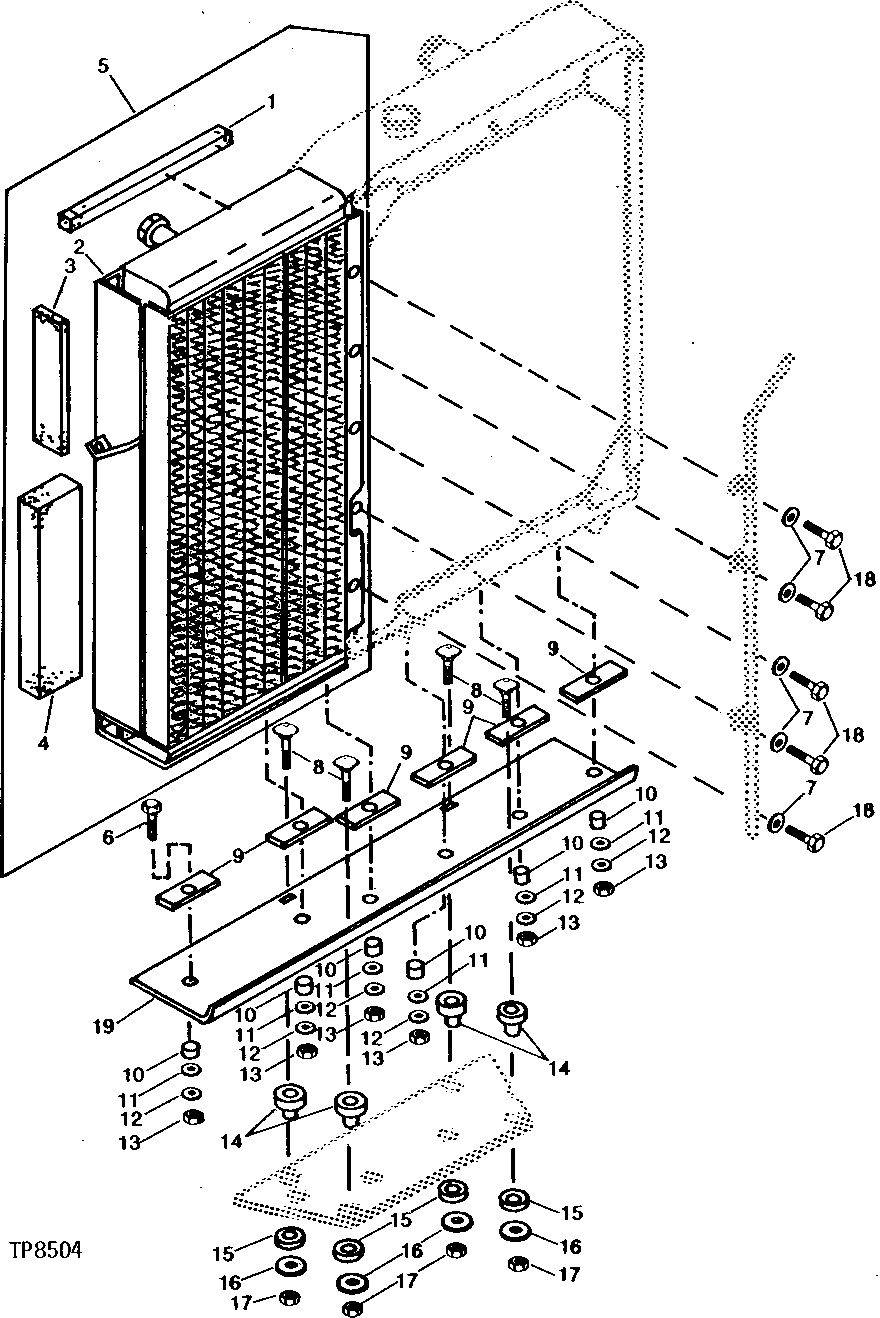

Запчасти John Deere 90A 36 - HYDRAULIC OIL COOLER 3360 - EXCAVATOR 33

1

R30937

ISOLATOR

1/2" X 3-1/4"

1шт.

2

OIL COOLER

(SUB AT71392)

1шт.

3

T54772

ISOLATOR

1шт.

4

T52863

FOAM PAD

1шт.

5

AT71392

OIL COOLER

1шт.

6

19H2993

CAP SCREW

1/2" X 1-1/2"

2шт.

7

R43696

WASHER

10шт.

8

03H1596

BOLT

1/2" X 3-1/4"

4шт.

9

U45318

STRAP

6шт.

10

M43318

BUSHING

6шт.

11

U45315

WASHER

6шт.

12

24H1204

WASHER

9/16" X 1-15/32" X 0.075"

6шт.

13

14H1040

NUT

1/2"

6шт.

14

AT169186

ISOLATOR

(SUB FOR AT59650)

4шт.

15

ISOLATOR

(SUB AT169186)

4шт.

16

24H1346

WASHER

13.487 X 44.450 X 3.048 MM (17/32" X 1-3/4" X 0.120")

4шт.

17

K40014

LOCK NUT

(SUB FOR BP12214, THIS APPLICATION)

4шт.

18

19H2284

CAP SCREW

3/8" X 7/8"

10шт.

19

T72134

SUPPORT

1шт.
