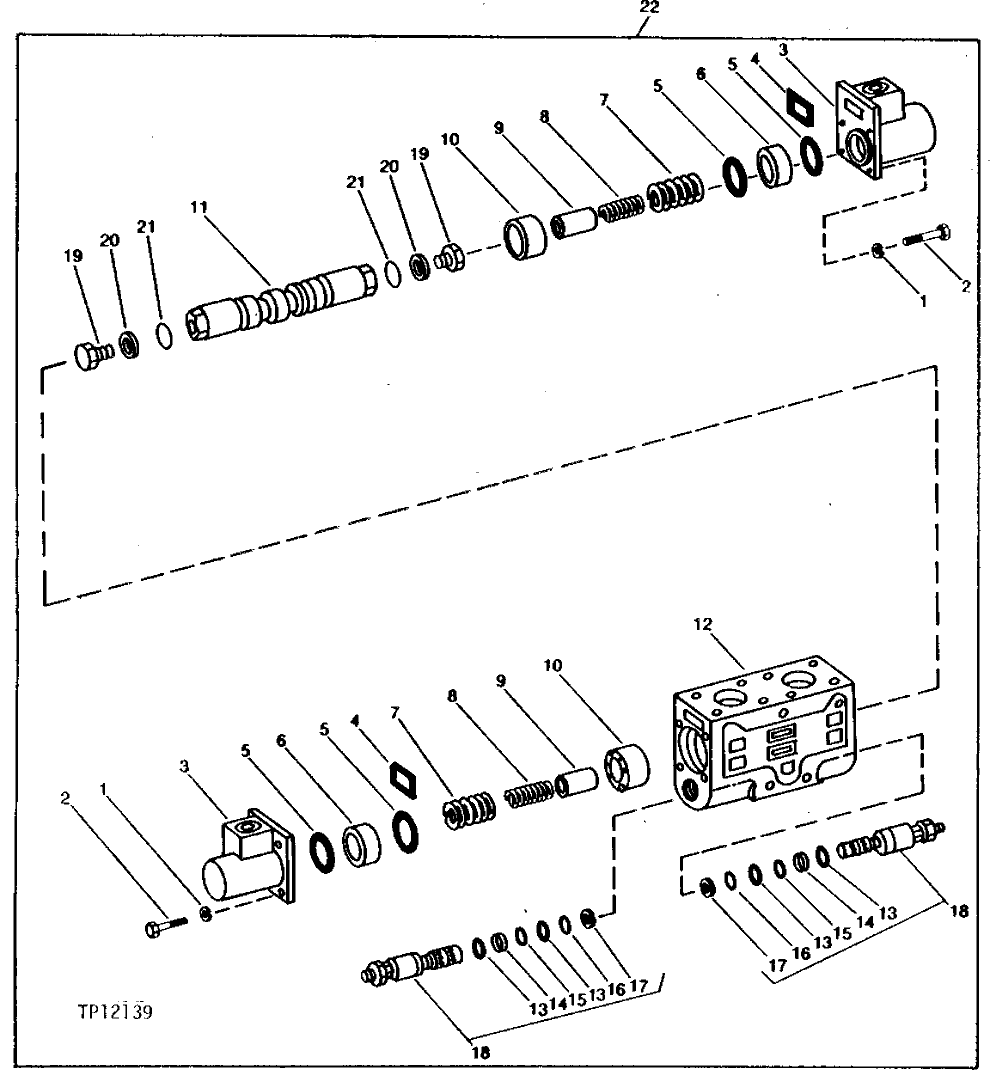

Запчасти John Deere 90A 30 - BOOM, CROWD AND BUCKET VALVE SECTION 3360 - EXCAVATOR 33

1

12H303

LOCK WASHER

5/16"

8шт.

2

19H3352

SCREW

5/16" X 1-1/4"

8шт.

3

T71826

CAP

2шт.

4

T71824

WASHER

2шт.

5

T12282

O-RING

2шт.

6

T71832

WASHER

2шт.

7

T71830

SPRING

2шт.

8

T71829

SPRING

2шт.

9

T71828

SLEEVE

2шт.

10

T21827

WASHER

2шт.

11

SPOOL

(SUB AT74564)

2шт.

12

HOUSING

(SUB AT74564)

2шт.

13

H63289

O-RING

2шт.

14

U45858

BACK-UP RING

(SUB FOR T75525)

2шт.

15

H35237

O-RING

(SUB AT68888)

1шт.

16

R33259

O-RING

1шт.

17

T81247

BACK-UP RING

(SUB FOR A36432, THIS APPLICATION) (SUB FOR T81290)

1шт.

18

AT115553

RELIEF VALVE

22 478 KPA (3260 PSI) (SUB FOR AT74565, THIS APPLICATION)

2шт.

19

BOLT

(SUB AT74564)

2шт.

20

T71823

BACK-UP RING

2шт.

21

R29354

O-RING

2шт.

22

AT74564

CONTROL VALVE

(SUB FOR AT68888)

3шт.
