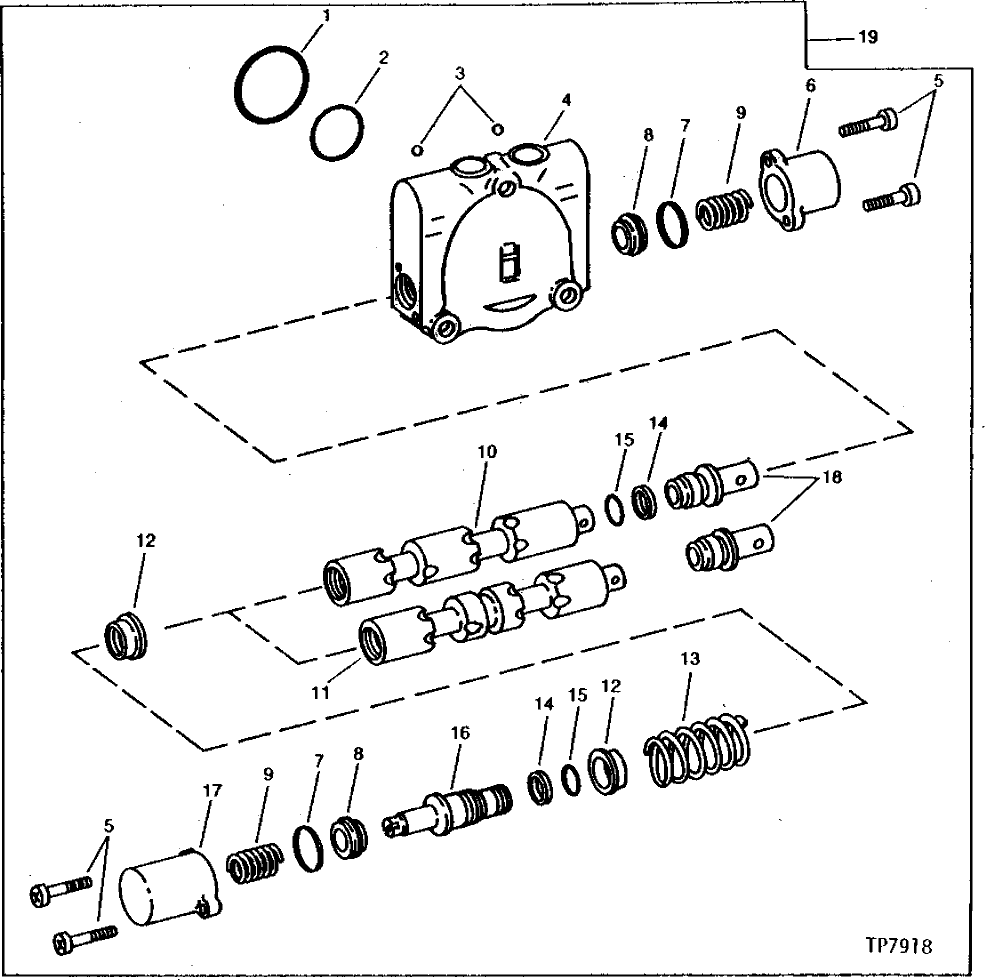

Запчасти John Deere 90A 24 - TRACK VALVE SECTIONS 3360 - EXCAVATOR 33

1

R41987

O-RING

(K)

1шт.

2

R30200

O-RING

(K)

1шт.

3

H871R

BALL

2шт.

4

HOUSING

(SUB AT68880) (R.H.)

1шт.

HOUSING

(SUB AT68882) (L.H.)

1шт.

5

T71811

SCREW

4шт.

6

T75585

CAP

(SHORT)

1шт.

7

T75580

WASHER

(K)

2шт.

8

T75582

BUSHING

2шт.

9

T75584

COMPRESSION SPRING

2шт.

10

VALVE SPOOL

(SUB AT68880) (R.H.)

1шт.

11

VALVE SPOOL

(SUB AT68882) (L.H.)

1шт.

12

T75583

CAP

2шт.

13

T71812

SPRING

1шт.

14

T71819

BACK-UP RING

(K)

2шт.

15

R459R

O-RING

(K) (SUB FOR T71818)

1шт.

16

T71809

RETAINER

1шт.

17

T75581

CAP

(LONG)

1шт.

18

T71813

SPOOL

1шт.

19

AT68880

HOUSING

R.H. VALVE

1шт.

AT68882

HOUSING

L.H. VALVE

1шт.
