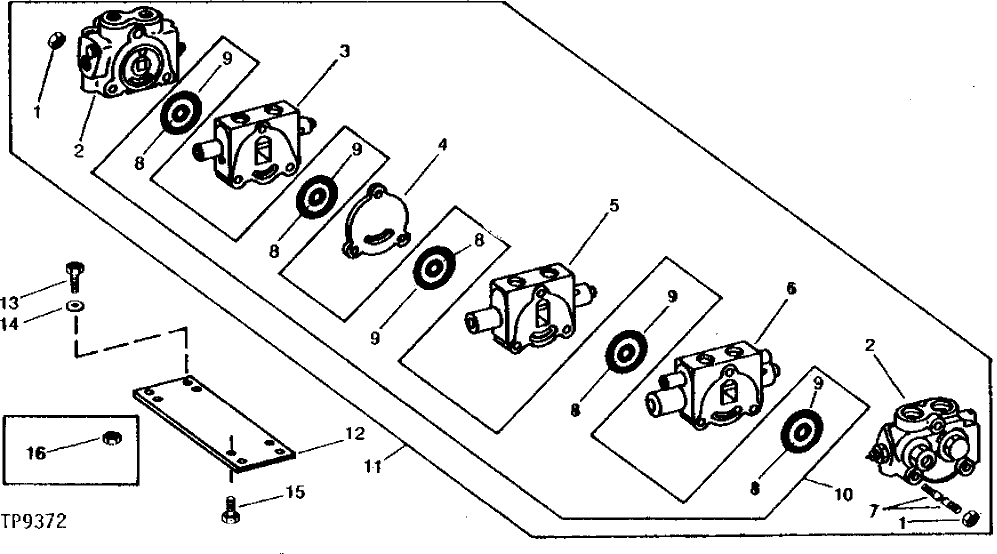

Запчасти John Deere 90A 20 - SWING AND TRACK VALVE ASSEMBLY 3360 - EXCAVATOR 33

1

14H888

NUT

9/16"

6шт.

2

AT56170

HOUSING

2шт.

3

AT68880

HOUSING

1шт.

4

T58411

SPACER

1шт.

5

AT68882

HOUSING

1шт.

6

AT68881

SECTION

1шт.

7

T60288

STUD

3шт.

8

R30200

O-RING

5шт.

9

R41987

O-RING

5шт.

10

AT58371

SEAL KIT

1шт.

11

VALVE

( AT68875 USE IF AVAILABLE)

1шт.

12

T60741

PLATE

1шт.

13

19H1356

CAP SCREW

5/8" X 1-3/4"

4шт.

14

24M7241

WASHER

17 X 34 X 4 MM, (SUB FOR T19584 AND T40728)

4шт.

15

19H2573

CAP SCREW

5/8" X 1-1/4"

4шт.

16

14H821

NUT

5/8"

4шт.
