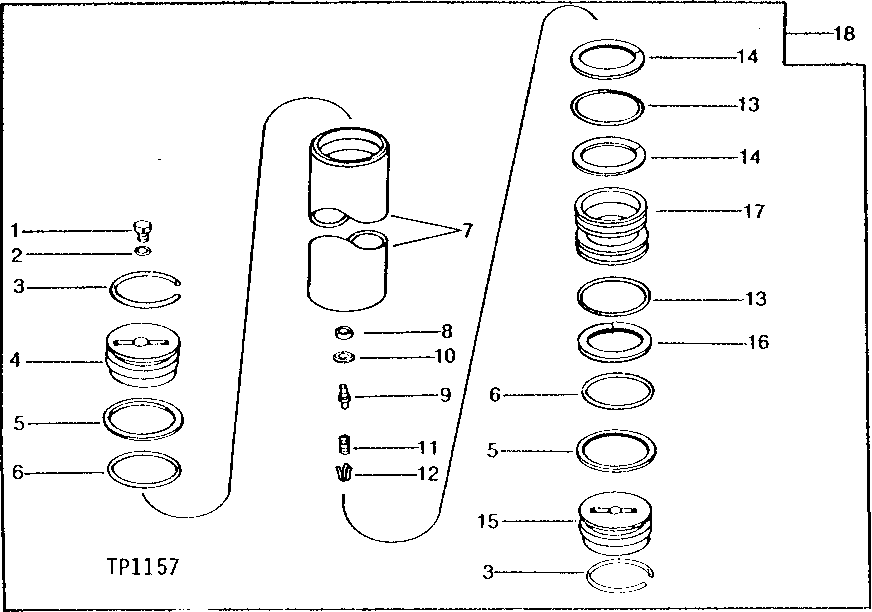

Запчасти John Deere 90A 19 - HYDRAULIC ACCUMULATOR 3360 - EXCAVATOR 33

1

R27094

DRAIN PLUG

1шт.

2

R26286

O-RING

1шт.

3

R78101

SNAP RING

(SUB FOR U10136)

2шт.

4

R48957

END

1шт.

5

R78823

BACK-UP RING

(SUB FOR R35684, THIS APPLICATION)

2шт.

6

R86192

O-RING

(SUB FOR U12331)

2шт.

7

R77866

HYDRAULIC CYLINDER BARREL

(SUB FOR R46986)

1шт.

8

R60038

PACKING

1шт.

9

R47085

VALVE

1шт.

10

R47087

WASHER

1шт.

11

R47086

SPRING

1шт.

12

R41877

GUIDE

1шт.

13

A4728R

O-RING

2шт.

14

L29015

BACK-UP RING

2шт.

15

R47912

CAP

1шт.

16

R27649

BACK-UP RING

1шт.

17

R57103

PISTON

1шт.

18

RE11966

ACCUMULATOR

(SUB FOR AR46054) (SUB RE29331) (ALSO ORDER R80752 ENGLISH LABEL, R80753 SPANISH LABEL, R80754 FRENCH LABEL AND R82337 GERMAN LABEL AS REQUIRED)

1шт.
