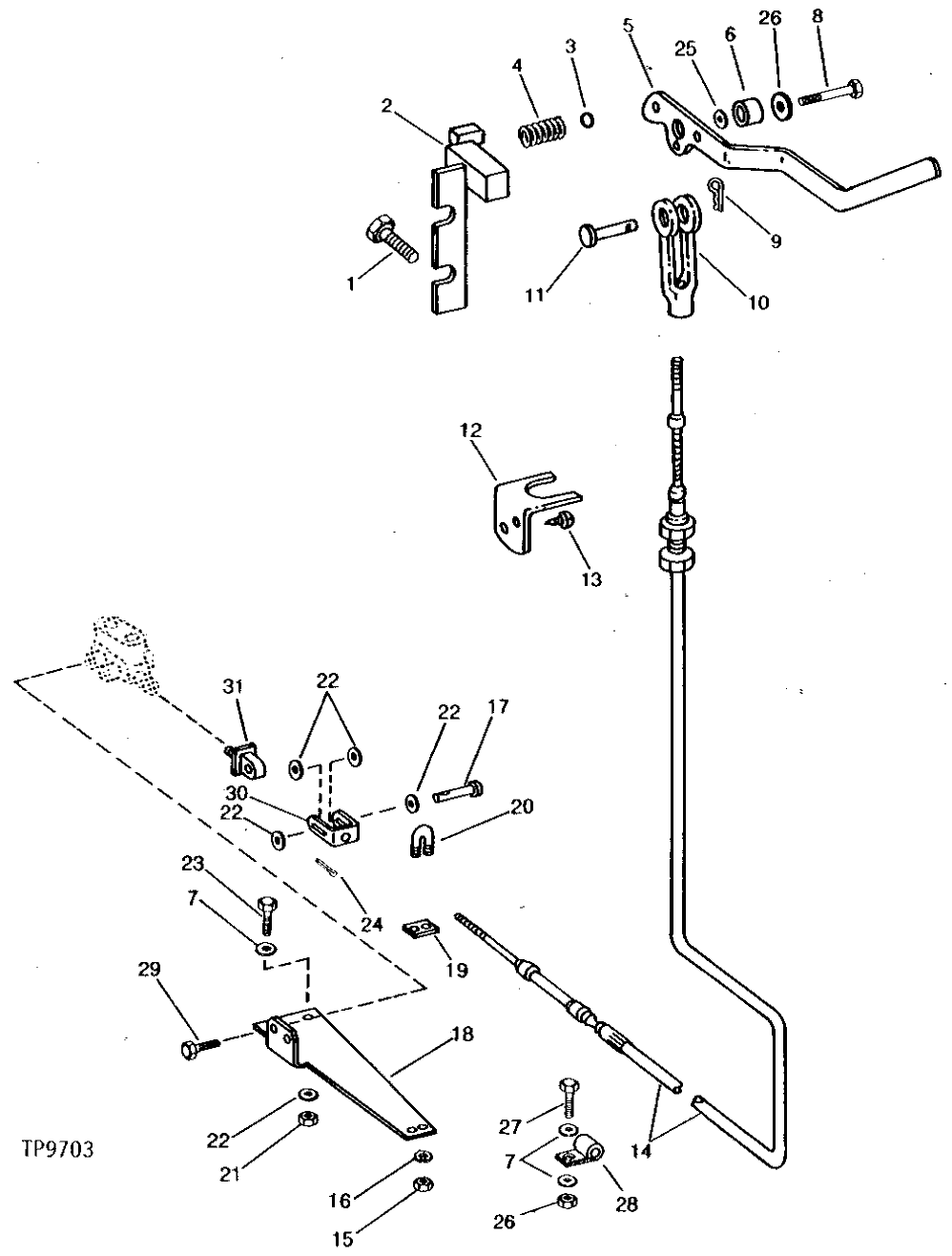

Запчасти John Deere 90A 8 - PILOT CONTROL MANUAL SHUT-OFF 3360 - EXCAVATOR 33

1

T22728

SCREW

2шт.

2

AT69828

BRACKET

1шт.

3

T39666

BALL

1шт.

4

T44090

SPRING

1шт.

5

T75189

LEVER

1шт.

6

T75190

SPACER

1шт.

7

24H1305

WASHER

13/32" X 13/16" X 0.065"

4шт.

8

19H3239

CAP SCREW

3/8" X 1-1/4"

1шт.

9

11M7079

COTTER PIN

2.500 X 12 MM

1шт.

10

T184870

YOKE

(SUB FOR T38708)

1шт.

11

H858R

PIN FASTENER

1шт.

12

T75191

ANGLE

1шт.

13

T22728

SCREW

2шт.

14

AT107238

CABLE

(SUB FOR AT69360 ALONG WITH T107033)

1шт.

15

14H786

NUT

1/4"

4шт.

16

12H302

LOCK WASHER

1/4"

2шт.

17

BP12584

1шт.

18

T76627

BRACKET

1шт.

19

T15021

STRAP

1шт.

20

T13988

U-BOLT

1шт.

21

14H812

NUT

3/8"

3шт.

22

24H1287

WASHER

9/32" X 1/2" X 0.060"

6шт.

23

19H3483

CAP SCREW

3/8" X 1-1/8"

2шт.

24

11M7082

COTTER PIN

2.500 X 25 MM

1шт.

25

M49960

WASHER

1шт.

26

24H1308

WASHER

13/32" X 1" X 0.134"

1шт.

27

19H1648

CAP SCREW

3/8" X 3/4"

1шт.

28

H75541

CLAMP

(SUB FOR R34557)

1шт.

29

19H2020

CAP SCREW

5/16" X 1/2"

2шт.

30

T76628

CLEVIS

1шт.

31

T76626

EYEBOLT

1шт.
