3C - PILOT CONTROL HAND CONTROLLER

Запчасти John Deere 90A 3C - PILOT CONTROL HAND CONTROLLER 3360 - EXCAVATOR 33

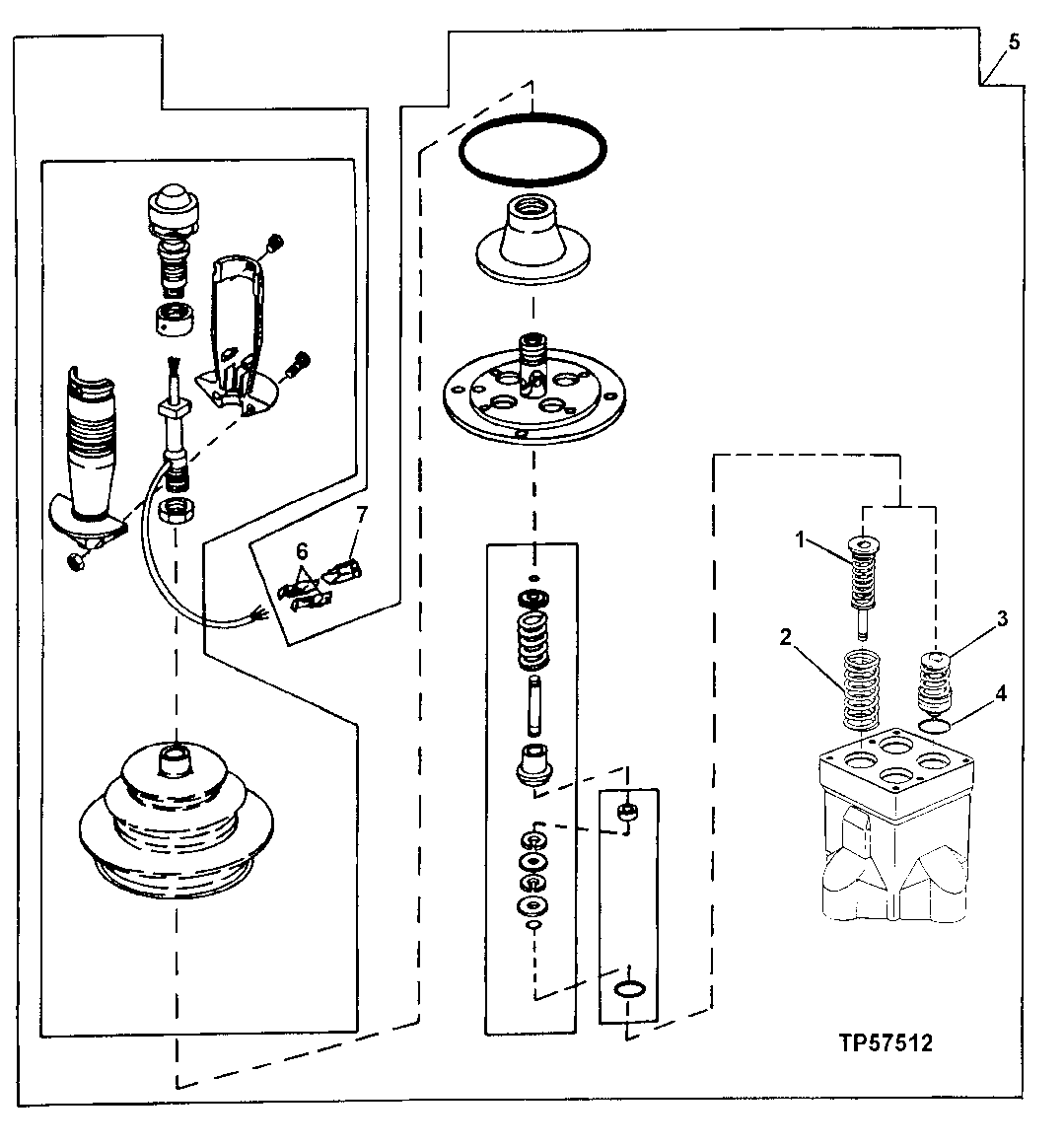

Схема запчастей John Deere 90A - 3C - PILOT CONTROL HAND CONTROLLER 3360 - EXCAVATOR 33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T114617

SPRING

(SUB FOR T165551)

1шт.

2

AT184875

SPRING ASSEMBLY

1шт.

3

AT184876

PUSH PIN

1шт.

4

T149316

O-RING

1шт.

5

AT130070

MANUAL HYDRAULIC VALVE

(LEFT) (ALSO ORDER T28586 AND (2) T34067)

1шт.

AT184914

CONTROL

(RIGHT) (ALSO ORDER T28586 AND (2) T34067)

1шт.

6

T34067

ELEC. CONNECTOR TERMINAL

1шт.

7

T28586

ELECTRICAL CONNECTOR ASSY

2шт.
