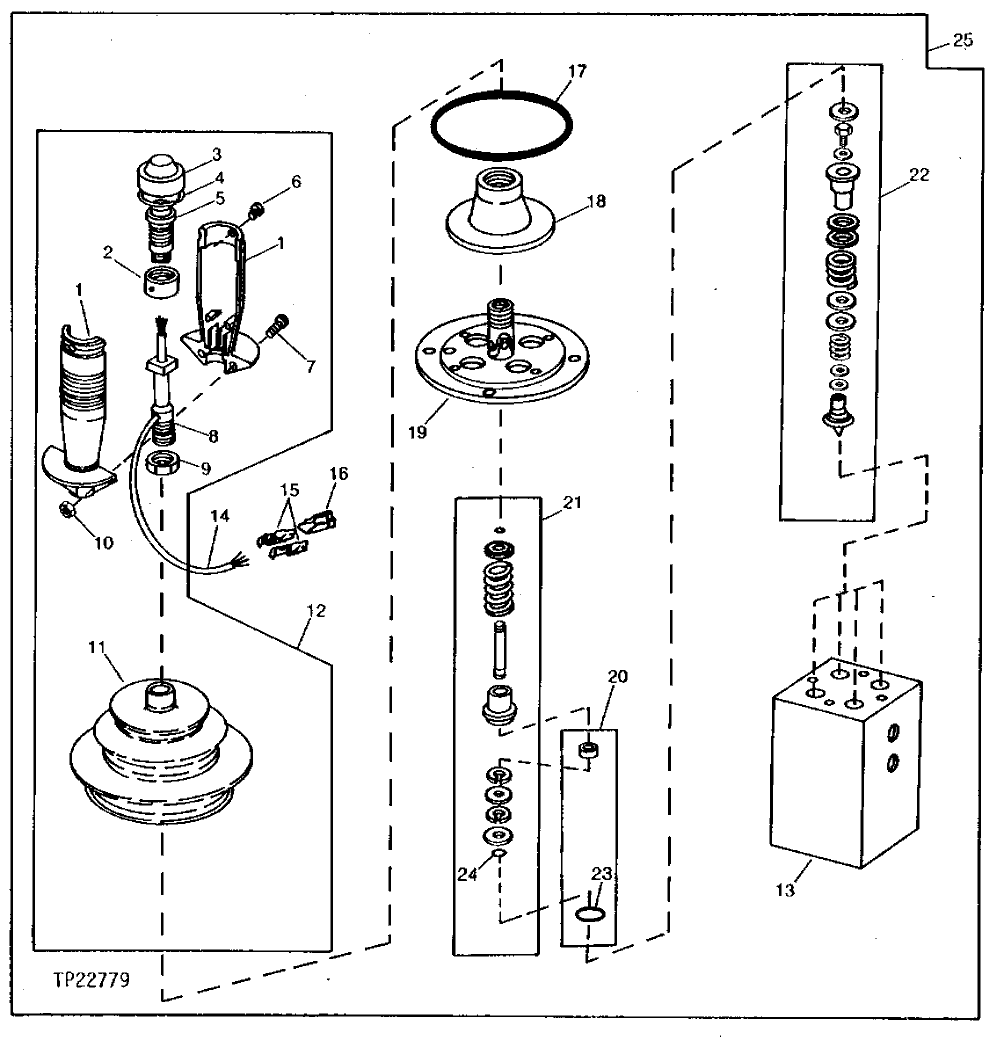

Запчасти John Deere 90A 3A - PILOT CONTROL HAND CONTROLLER 3360 - EXCAVATOR 33

1

T75205

HANDLE

(SET OF TWO HALVES) (SUB T76406 AND T76407)

1шт.

T76406

HANDLE

(SET OF TWO HALVES)

1шт.

2

T75209

LOCKING COLLAR

1шт.

T76407

LOCKING COLLAR

1шт.

3

T75206

BOOT

1шт.

4

T75207

RING

1шт.

5

AT72944

SWITCH

1шт.

6

21M7044

SCREW

M3 X 0.5 X 5

2шт.

7

19M7702

SCREW

M4 X 0.7 X 10

2шт.

8

T103314

ROD

(SUB FOR T75208)

1шт.

9

14M7141

NUT

M14 X 2

1шт.

10

14M7139

NUT

M4 X 0.7

2шт.

11

T71872

BOOT

1шт.

12

AT68907

LEVER

(SUB AT74693)

1шт.

AT74693

LEVER

1шт.

13

HOUSING

1шт.

14

WIRE

(MAKE FROM AR84006)

ARшт.

15

T34067

ELEC. CONNECTOR TERMINAL

2шт.

16

T28586

ELECTRICAL CONNECTOR ASSY

1шт.

17

T103408

O-RING

(SUB FOR T35893)

1шт.

18

FLANGE

(SUB AT68905)

1шт.

19

AT139449

PLATE

1шт.

20

AT68909

SEAL KIT

1шт.

21

SPRING ASSEMBLY

( AT68908 NO LONGER AVAILABLE) (SUB AT130070 OR AT184914)

4шт.

22

AT68910

SPRING ASSEMBLY

(USE IF AVAILABLE) (SUB AT130070 OR AT184914)

4шт.

23

P46051

O-RING

4шт.

24

T26215

O-RING

1шт.

25

CONTROL

( AT68905 NO LONGER AVAILABLE) (SUB AT130070, (2) T34067, T28586 AND AT184914, (2) T34067, T28586)

2шт.

AT130070

MANUAL HYDRAULIC VALVE

(LEFT)

1шт.

AT184914

CONTROL

(RIGHT)

1шт.
