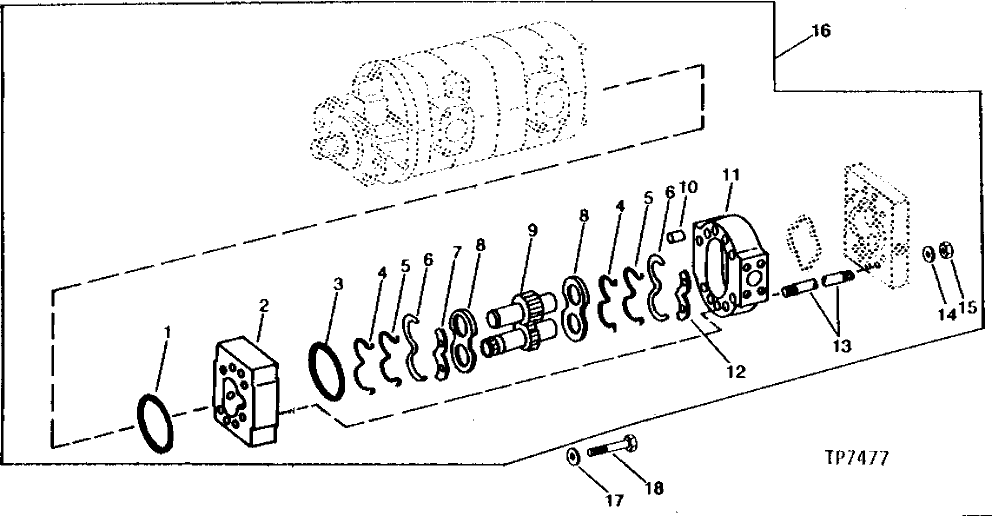

Запчасти John Deere 90A 2D - HYDRAULIC PUMP REAR SECTION 3360 - EXCAVATOR 33

1

H85996

O-RING

1шт.

2

HOUSING

(SUB AT74285)

1шт.

3

T42742

O-RING

1шт.

4

O-RING

(K1)(K2) ( U44856 USE IF AVAILABLE)

2шт.

5

BACK-UP RING

(K1)(K2) ( T61673 USE IF AVAILABLE)

2шт.

6

RETAINER

(K1)(K2) ( U44851 USE IF AVAILABLE)

2шт.

7

PLATE

(K2) ISOLATION (TOP) ( U44848 USE IF AVAILABLE)

1шт.

8

PLATE

(K2) PRESSURE, ( U44846 NO LONGER AVAILABLE) (SUB T75110 IF AVAILABLE)

2шт.

9

GEAR CASE

(SUB AT74285)

1шт.

10

U44854

DOWEL PIN

2шт.

11

GEAR CASE

(SUB AT74285)

1шт.

12

PLATE

(K2) ISOLATION (BOTTOM) ( U44849 USE IF AVAILABLE)

1шт.

13

T76119

STUD

8шт.

14

U44865

WASHER

8шт.

15

U44860

STUD

8шт.

16

AT74285

KIT

1шт.

17

U44865

WASHER

4шт.

18

R30344

SCREW

(SUB FOR T76197)

4шт.
