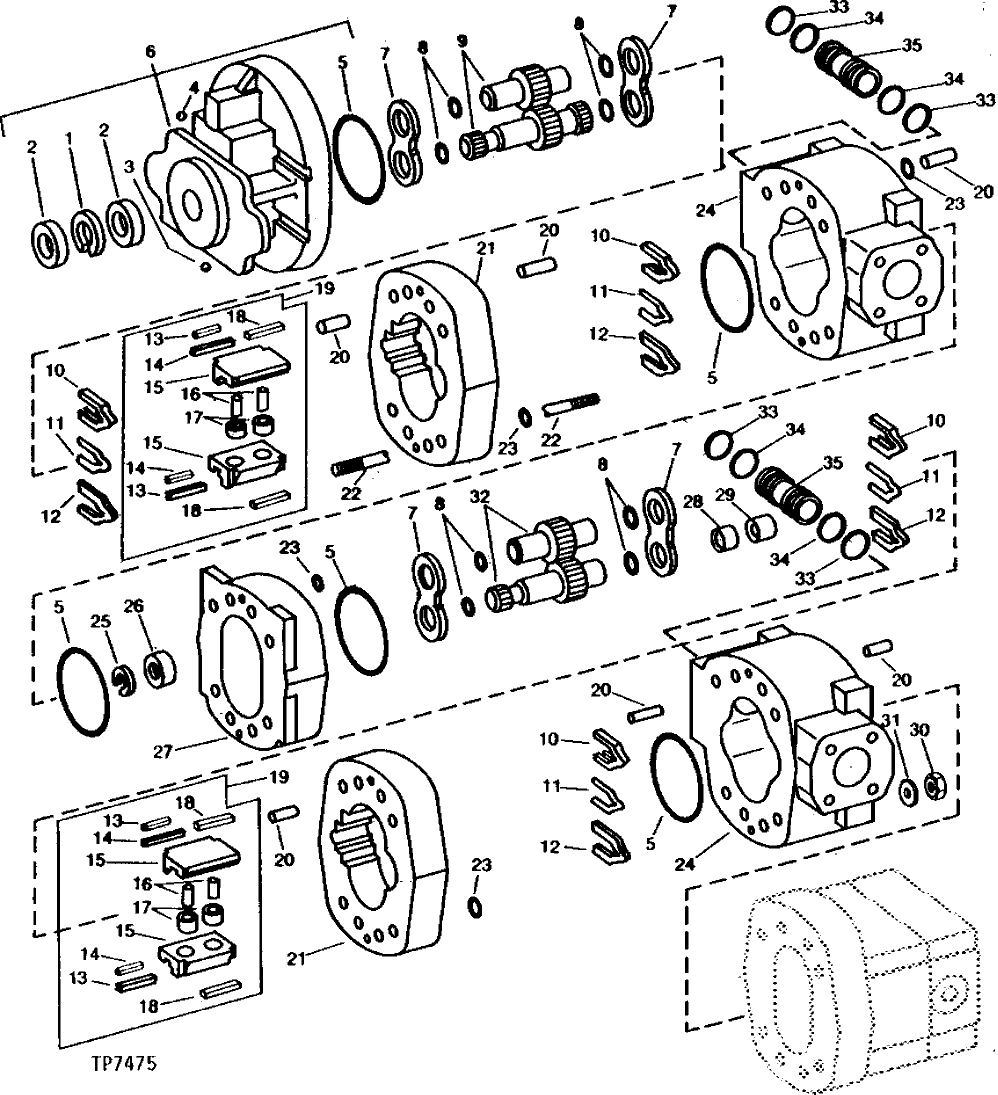

Запчасти John Deere 90A 2B - HYDRAULIC PUMP FRONT AND CENTER SECTION 3360 - EXCAVATOR 33

1

N10193

SNAP RING

(SUB FOR T76101)

1шт.

2

T76100

SEAL

2шт.

3

T75109

PLUG

(SUB FOR T76102)

1шт.

4

400R

BALL

1шт.

5

T56238

O-RING

5шт.

6

KIT

ASSEMBLY ( AT74277 NO LONGER AVAILABLE)

1шт.

7

PLATE

PRESSURE ( T76108 NO LONGER AVAILABLE)

4шт.

8

T25335

O-RING

8шт.

9

AT74280

GEAR

1шт.

10

T76115

BACK-UP RING

4шт.

11

T76116

O-RING

4шт.

12

T76117

BACK-UP RING

4шт.

13

KEY

( T76112 NO LONGER AVAILABLE)

2шт.

14

ISOLATOR

STRIP ( T76113 NO LONGER AVAILABLE)

2шт.

15

PLATE

SHOE ( T76109 NO LONGER AVAILABLE)

2шт.

16

DOWEL PIN

( T76110 NO LONGER AVAILABLE)

2шт.

17

WASHER

( T76111 NO LONGER AVAILABLE)

2шт.

18

ABSORBER

THRUST ( T76114 NO LONGER AVAILABLE)

2шт.

19

SEAL KIT

SEALING SHOE KIT ( AT74284 NO LONGER AVAILABLE)

2шт.

20

U44854

DOWEL PIN

12шт.

21

HOUSING

( T76103 NO LONGER AVAILABLE)

2шт.

22

T76118

STUD

8шт.

23

R43780

O-RING

32шт.

24

HOUSING

HOUSING (WITH BUSHINGS) ( AT74281 NO LONGER AVAILABLE)

2шт.

25

H80753

SNAP RING

(SUB FOR T76105)

1шт.

26

T76104

SPLINED COUPLING

1шт.

27

HOUSING

(WITH BUSHINGS) ( AT74282 NO LONGER AVAILABLE)

1шт.

28

T76106

SLEEVE

1шт.

29

T76107

SPLINED COUPLING

1шт.

30

14H863

NUT

3/4"

8шт.

31

R78019

WASHER

(SUB FOR T21397)

8шт.

32

GEAR

SET ( AT74283 NO LONGER AVAILABLE)

1шт.

33

T44948

O-RING

4шт.

34

T76334

BACK-UP RING

4шт.

35

T76333

SLEEVE

2шт.
