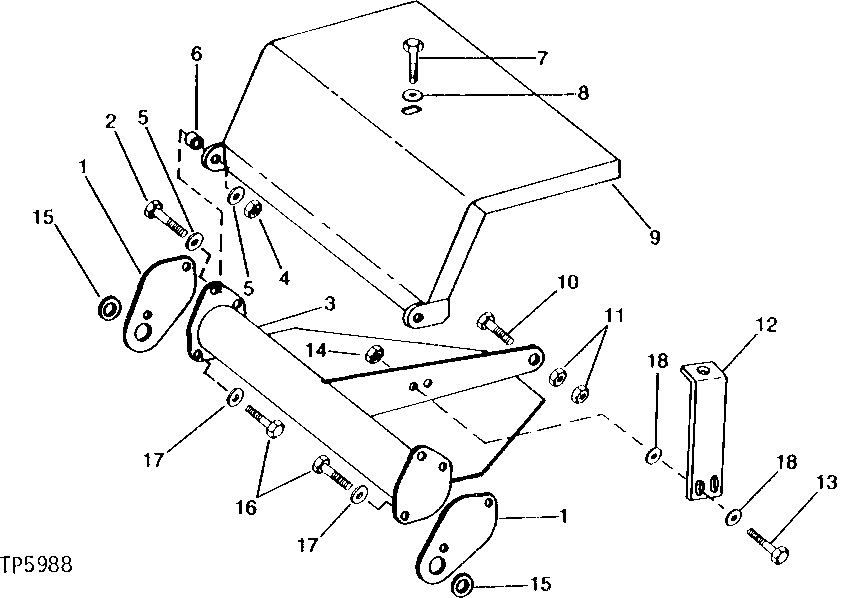

Запчасти John Deere 90A 4 - UNDERCARRIAGE SHIELD 1913 - SHEET METAL AND STYLING 19

1

T72708

SUPPORT

(SUB FOR U14555, THIS APPLICATION)

2шт.

2

19H1439

CAP SCREW

5/8" X 3"

2шт.

3

AT69371

SHIELD

1шт.

4

K40015

LOCK NUT

2шт.

5

24H1139

WASHER

11/16" X 1-1/4" X 0.105"

4шт.

6

T52171

BUSHING

2шт.

7

T56211

SCREW

1шт.

8

24H1111

WASHER

17/32" X 1-1/16" X 0.090"

2шт.

9

COVER

( AT46440 USE IF AVAILABLE)

1шт.

10

19H3099

CAP SCREW

1" X 3-3/4"

1шт.

11

14H806

NUT

1"

2шт.

12

T43699

ANGLE

1шт.

13

19H2473

CAP SCREW

1/2" X 1-3/4"

2шт.

14

14H1040

NUT

1/2"

2шт.

15

T46498

WASHER

BETWEEN QUILL HOUSING AND PROPEL MOTOR GUARD

ARшт.

16

T70783

SCREW

4шт.

17

N184069

WASHER

4шт.

18

24H1111

WASHER

17/32" X 1-1/16" X 0.090"

4шт.
