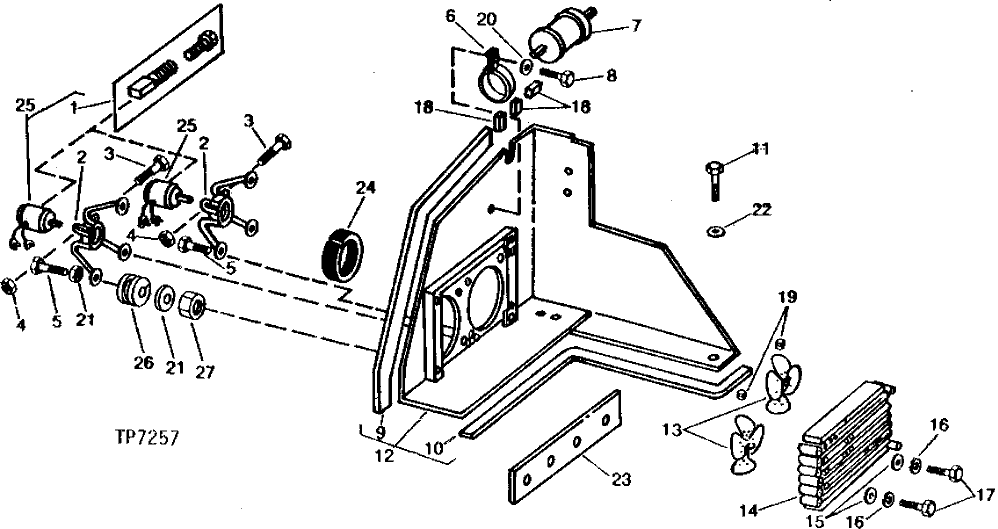

Запчасти John Deere 90A 4 - CONDENSER WITH MOTORS, DRYER AND SUPPORT 1830 - OPERATORS STATION 18

1

AT74308

KIT

2шт.

2

AT59208

SUPPORT

(SUB AT71700) (ALSO ORDER T74190)

2шт.

AT71700

SUPPORT

1шт.

3

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

4

14H812

NUT

3/8"

2шт.

5

19H2664

CAP SCREW

5/16" X 3/4"

8шт.

6

R53422

CLAMP

1шт.

7

AR59780

RECEIVER-DRYER

1шт.

8

19H3065

CAP SCREW

3/8" X 2"

1шт.

9

FOAM PAD

( T58379 USE IF AVAILABLE)

1шт.

10

ISOLATOR

( T58378 USE IF AVAILABLE)

1шт.

11

19H2676

CAP SCREW

3/8" X 1"

4шт.

12

AT56105

SUPPORT

1шт.

13

AT58600

FAN

10" CONDENSER

2шт.

14

AT56087

CORE

1шт.

15

T67811

WASHER

4шт.

16

24H1287

WASHER

9/32" X 5/8" X 0.065"

4шт.

17

19H2337

CAP SCREW

1/4" X 4"

4шт.

18

R58666

ISOLATOR

3шт.

19

22H922

SET SCREW

NO. 10 X 1/4"

2шт.

20

24M7096

WASHER

0.413" X 0.709" X 0.063"

1шт.

21

24H1136

WASHER

11/32" X 11/16" X 0.120"

8шт.

22

24H1219

WASHER

7/16" X 1" X 0.083"

4шт.

23

T61312

ISOLATOR

1шт.

24

T74190

ISOLATOR

1шт.

25

AT56110

MOTOR

(SUB AT72475 AND AT58600, THIS APPLICATION)

2шт.

AT72475

ELECTRIC MOTOR

(ALSO ORDER AT58600, THIS APPLICATION)

1шт.

26

T70154

GROMMET

8шт.

27

14H785

NUT

5/16"

8шт.
