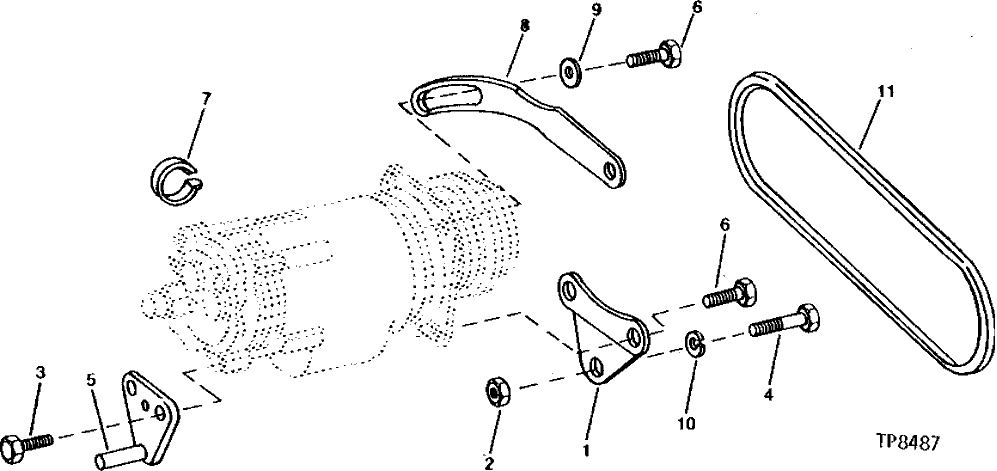

Запчасти John Deere 90A 3 - COMPRESSOR MOUNTING BRACKETS 1830 - OPERATORS STATION 18

1

R45981

BRACKET

1шт.

2

14H1040

NUT

1/2"

1шт.

3

19M7167

CAP SCREW

M10 X 25

2шт.

4

19H2735

CAP SCREW

1/2" X 2"

1шт.

5

AR77342

PIN

1шт.

6

19M7881

SCREW

M8 X 20, M10 X 50

3шт.

7

R44302

TIE BAND

1шт.

8

R57342

PLATE

1шт.

9

24M7298

WASHER

8.400 X 25 X 2 MM, (SUB FOR 24M7207)

1шт.

10

12H301

LOCK WASHER

1/2"

1шт.

11

T53320

V-BELT

1шт.

12

28H3381

SPACER

3/8" X 5/8"

1шт.
