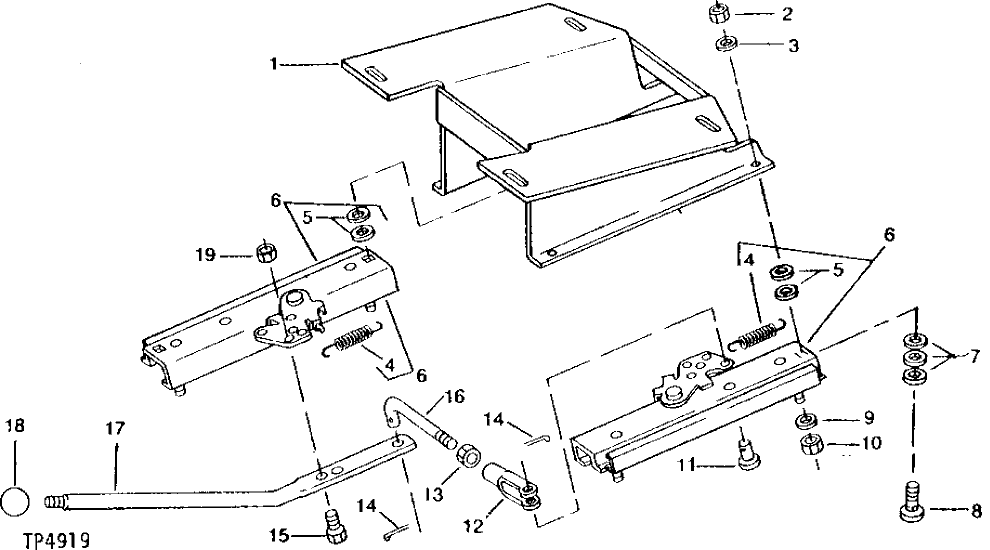

Запчасти John Deere 90A 2 - SEAT ADJUSTERS 1821 - OPERATORS STATION 18

1

AT47956

SUPPORT

1шт.

2

14H650

NUT

5/16"

4шт.

3

24H1685

WASHER

11/32" X 47/64" X 0.083"

4шт.

4

T39497

SPRING

2шт.

5

24H1122

WASHER

3/8" X 7/8" X 0.083"

8шт.

6

AT37474

ADJUSTER

2шт.

7

24H1308

WASHER

13/32" X 1" X 0.134"

12шт.

8

T38065

SCREW

4шт.

9

24H1292

WASHER

11/32" X 3/4" X 0.120"

4шт.

10

14H785

NUT

5/16"

4шт.

11

L985T

PIN FASTENER

1шт.

12

L987T

YOKE

1шт.

13

14H631

NUT

0.190"

1шт.

14

11M7077

COTTER PIN

1.600 X 25 MM

2шт.

15

21H1128

SCREW

0.190" X 3/4"

2шт.

16

T49287

BOLT

1шт.

17

T38737

LEVER

1шт.

18

M526T

KNOB

1шт.

19

T531T

LOCK NUT

2шт.
