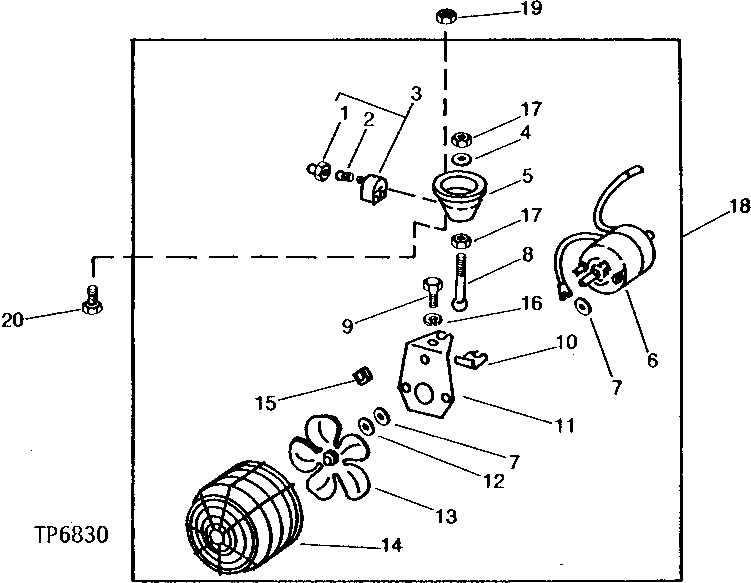

Запчасти John Deere 90A 14 - CAB CIRCULATING FAN 1810 - OPERATORS STATION 18

1

COVER

(SUB AU42189 OR AT41571)

1шт.

2

AT41570

BULB

1шт.

3

AU42189

SWITCH

(SUB FOR AT41571)

1шт.

4

12H310

LOCK WASHER

3/8"

1шт.

5

BASE

( U46504 NO LONGER AVAILABLE)

1шт.

6

MOTOR

(SUB AT41568) ( AT41572 NO LONGER AVAILABLE)

1шт.

7

24H1283

WASHER

7/32" X 1/2" X 0.049"

2шт.

8

ROD

( U46503 NO LONGER AVAILABLE)

1шт.

9

19H2664

CAP SCREW

5/16" X 3/4"

1шт.

10

CLAMP

( U46501 NO LONGER AVAILABLE)

1шт.

11

CLAMP

( U46502 NO LONGER AVAILABLE)

1шт.

12

14H605

NUT

0.164"

2шт.

13

AU43849

FAN BLADE

1шт.

14

AT55787

GUARD

1шт.

15

U46505

CLIP

6шт.

16

12H291

LOCK WASHER

5/16"

1шт.

17

14H732

NUT

3/8"

2шт.

18

AT41568

FAN

2шт.

19

14H631

NUT

0.190"

1шт.

12H295

LOCK WASHER

0.190"

1шт.

20

21H1316

SCREW

0.190" X 1/2"

3шт.
