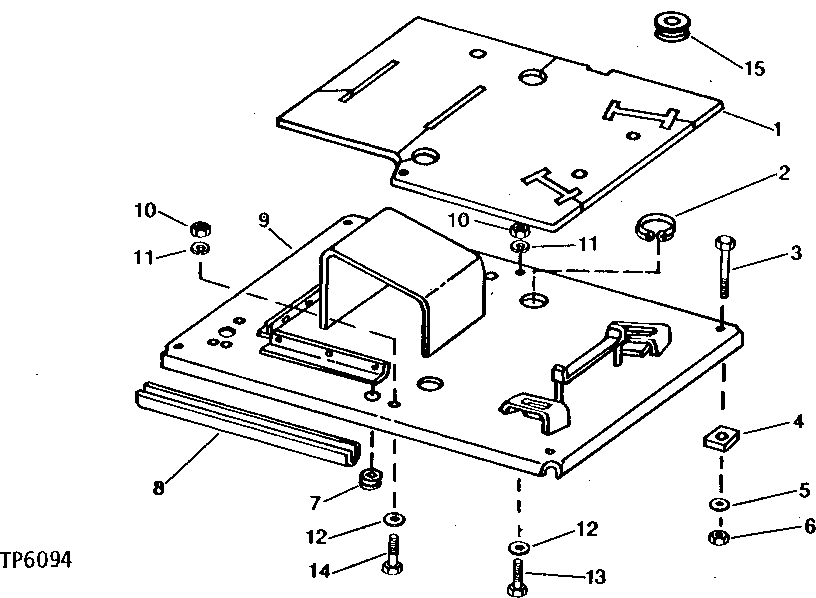

Запчасти John Deere 90A 8 - PLATFORM AND FLOOR MAT 1810 - OPERATORS STATION 18

1

T71855

MAT

1шт.

2

MOLDING

(MAKE FROM T58056) (SUB FOR T61798, THIS APPLICATION)

ARшт.

3

19H3214

CAP SCREW

5/8" X 3"

4шт.

4

T78172

WASHER

(SUB FOR T43597)

8шт.

5

24H1368

WASHER

21/32" X 1-5/16" X 0.090"

4шт.

6

K40015

LOCK NUT

(SUB FOR U14555)

4шт.

7

MOLDING

(MAKE FROM T58056) (SUB FOR T46876, THIS APPLICATION)

ARшт.

8

MOLDING

(MAKE FROM T58056)

ARшт.

9

AT68923

PLATFORM

1шт.

10

14H812

NUT

3/8"

2шт.

11

12H304

LOCK WASHER

3/8"

2шт.

12

24H1308

WASHER

13/32" X 1" X 0.134"

2шт.

13

19H3065

CAP SCREW

3/8" X 2"

1шт.

14

19H2676

CAP SCREW

3/8" X 1"

1шт.

15

U16949

GROMMET

1шт.
