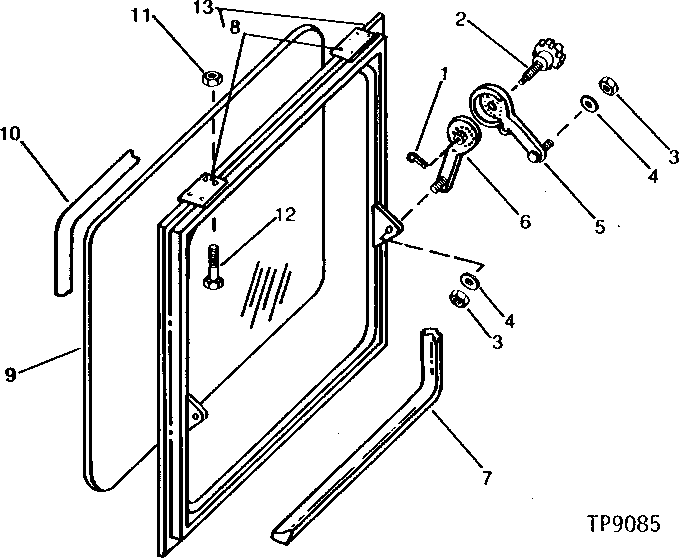

Запчасти John Deere 90A 6 - CAB REAR WINDOW 1810 - OPERATORS STATION 18

1

J16931

PIN

2шт.

2

AR41850

KNOB

2шт.

3

K40003

LOCK NUT

9 MM (3/8")

4шт.

4

24H1305

WASHER

13/32" X 13/16" X 0.065"

4шт.

5

AR41852

ARM

FEMALE, R.H

1шт.

AR41854

ARM

FEMALE, L.H

1шт.

6

AR41853

ARM

MALE

2шт.

7

WEATHERSTRIP

2 718 MM (107") REQUIRED, (MAKE FROM U43011)

1шт.

8

U43102

HINGE

2шт.

9

U45387

WINDOWPANE

1шт.

10

MOLDING

2 343 MM (92") REQUIRED, (MAKE FROM T71383)

1шт.

11

N10215

LOCK NUT

4шт.

12

N14822

SELF-LOCKING SCREW

(SUB FOR U43007)

4шт.

13

AU43704

FRAME

1шт.
