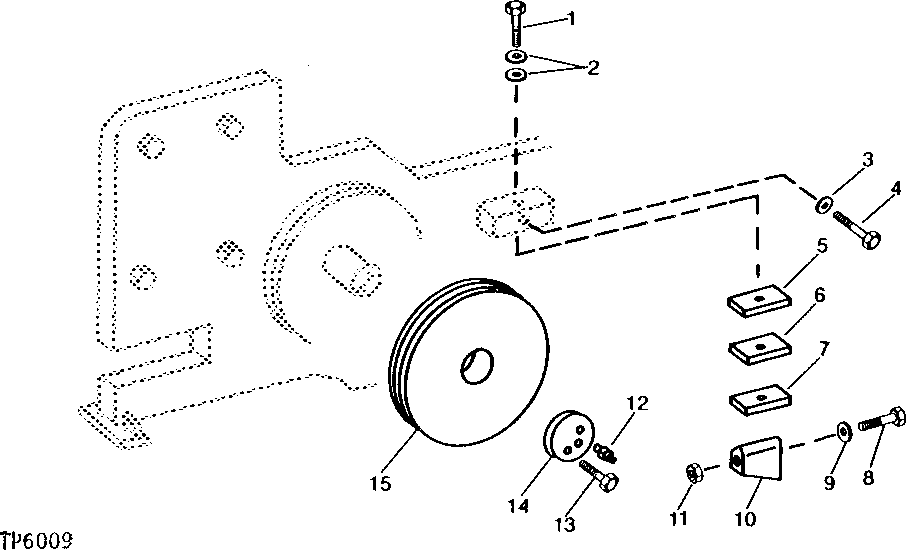

Запчасти John Deere 90A 2 - COUNTERWEIGHT PULLEY 1749 - FRAME, CHASSIS OR SUPPORTING STRUCTURE 17

1

19H2458

CAP SCREW

3/8" X 3"

2шт.

2

24H1219

WASHER

7/16" X 1" X 0.083"

ARшт.

3

24H1219

WASHER

7/16" X 1" X 0.083"

2шт.

4

19H2676

CAP SCREW

3/8" X 1", (USE TO HOLD EXTRA SHIMS)

2шт.

5

T60937

STRAP

2шт.

6

T60938

SHIM

ARшт.

7

T60936

STRAP

2шт.

8

08H4799

BOLT

3/4" X 10"

2шт.

9

U43180

SPACER

17/32" X 1-5/8" X .250"

2шт.

10

T60939

WEDGE

2шт.

11

14H858

NUT

3/4"

2шт.

12

JD7759

LUBRICATION FITTING

2шт.

13

19H2898

CAP SCREW

1/2" X 1-1/4"

4шт.

14

U45879

SPACER

2шт.

15

T50797

PULLEY

2шт.
