Запчасти John Deere 90A 6 - SWITCH PANEL FUSES AND ACCESSORY RELAY 1674 - ELECTRICAL SYSTEM 16

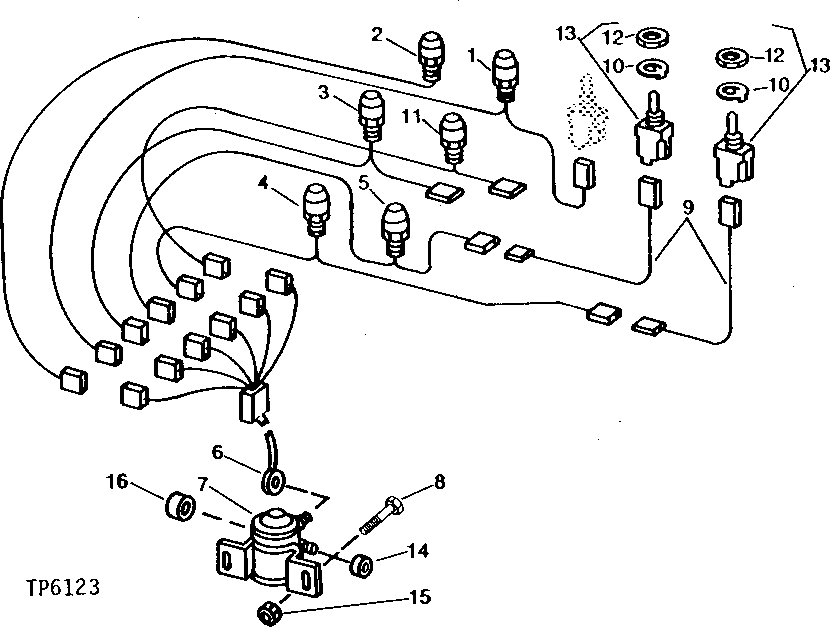

Схема запчастей John Deere 90A - 6 - SWITCH PANEL FUSES AND ACCESSORY RELAY 1674 - ELECTRICAL SYSTEM 16

Артикул

Название

Примечание

Количество

1

AT164924

FUSE HOLDER

(SUB FOR AT14193) (ALSO ORDER T82427) BLOWER SWITCH

1шт.

T82427

WASHER

(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)

1шт.

2

AT164924

FUSE HOLDER

(SUB FOR AT14193) (ALSO ORDER T82427) CONDENSOR FAN

1шт.

T82427

WASHER

(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)

1шт.

3

AT164924

FUSE HOLDER

(SUB FOR AT14193) (ALSO ORDER T82427) STARTER, HORN, AND FLUID AID SWITCHES

1шт.

T82427

WASHER

(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)

1шт.

4

AT164924

FUSE HOLDER

(SUB FOR AT14193) (ALSO ORDER T82427) TWO-SPEED SHIFT

1шт.

T82427

WASHER

(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)

1шт.

5

AT164924

FUSE HOLDER

(SUB FOR AT14193) (ALSO ORDER T82427) HOUSE LOCK

1шт.

T82427

WASHER

(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)

1шт.

6

AT68008

WIRING HARNESS

1шт.

7

AT69528

SOLENOID

24 VOLT

1шт.

8

19H1227

CAP SCREW

1/4" X 1/2"

2шт.

9

AT41412

WIRING LEAD

2шт.

10

R44096

LOCK PLATE

2шт.

11

AT164924

FUSE HOLDER

(SUB FOR AT14193) (ALSO ORDER T82427) CAB CIRCULATING FAN

1шт.

T82427

WASHER

(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)

1шт.

12

R44097

NUT

2шт.

13

AU41449

TOGGLE/ROCKER SWITCH

TWO SPEED CONTROL

1шт.

AU41449

TOGGLE/ROCKER SWITCH

HOUSE LOCK CONTROL

1шт.

14

24H1243

WASHER

11/32" X 5/8" X 1/16"

2шт.

15

14H786

NUT

1/4"

2шт.

16

24H1283

WASHER

7/32" X 1/2" X 0.049"

1шт.

Выбрано товаров: 23
