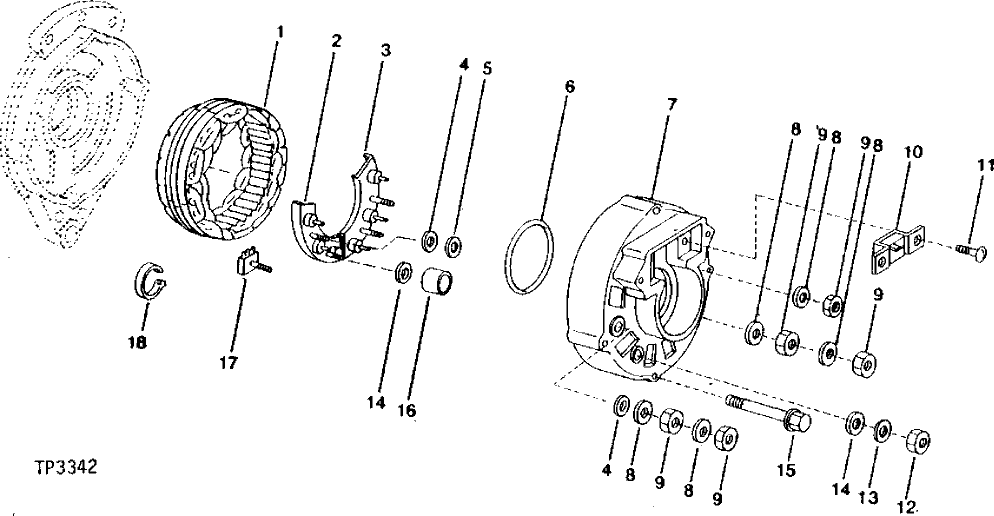

Запчасти John Deere 90A 4 - 42-AMPERE ALTERNATOR (REAR SECTION) 1672 - ELECTRICAL SYSTEM 16

1

STATOR

( AT49448 USE IF AVAILABLE)

1шт.

2

DIODE

RECTIFYING POSITIVE ( AT49451 USE IF AVAILABLE)

1шт.

3

DIODE

RECTIFYING NEGATIVE ( AT49450 USE IF AVAILABLE)

1шт.

4

R15036

WASHER

2шт.

5

BUSHING

( T50863 USE IF AVAILABLE)

1шт.

6

RING

( T50860 USE IF AVAILABLE)

1шт.

7

HOUSING

REAR ( T50859 USE IF AVAILABLE)

1шт.

8

12H246

LOCK WASHER

0.190"

5шт.

9

14H778

NUT

0.190"

5шт.

10

AT27128

HOLDER

1шт.

11

37H120

SCREW

0.164" X 1/2"

2шт.

12

14H786

NUT

1/4"

1шт.

13

12H302

LOCK WASHER

1/4"

1шт.

14

WASHER

( T50861 USE IF AVAILABLE)

2шт.

15

R47460

BOLT

4шт.

16

BUSHING

( T50862 USE IF AVAILABLE)

1шт.

17

DIODE

( AT49449 USE IF AVAILABLE)

1шт.

18

R44302

TIE BAND

2шт.
