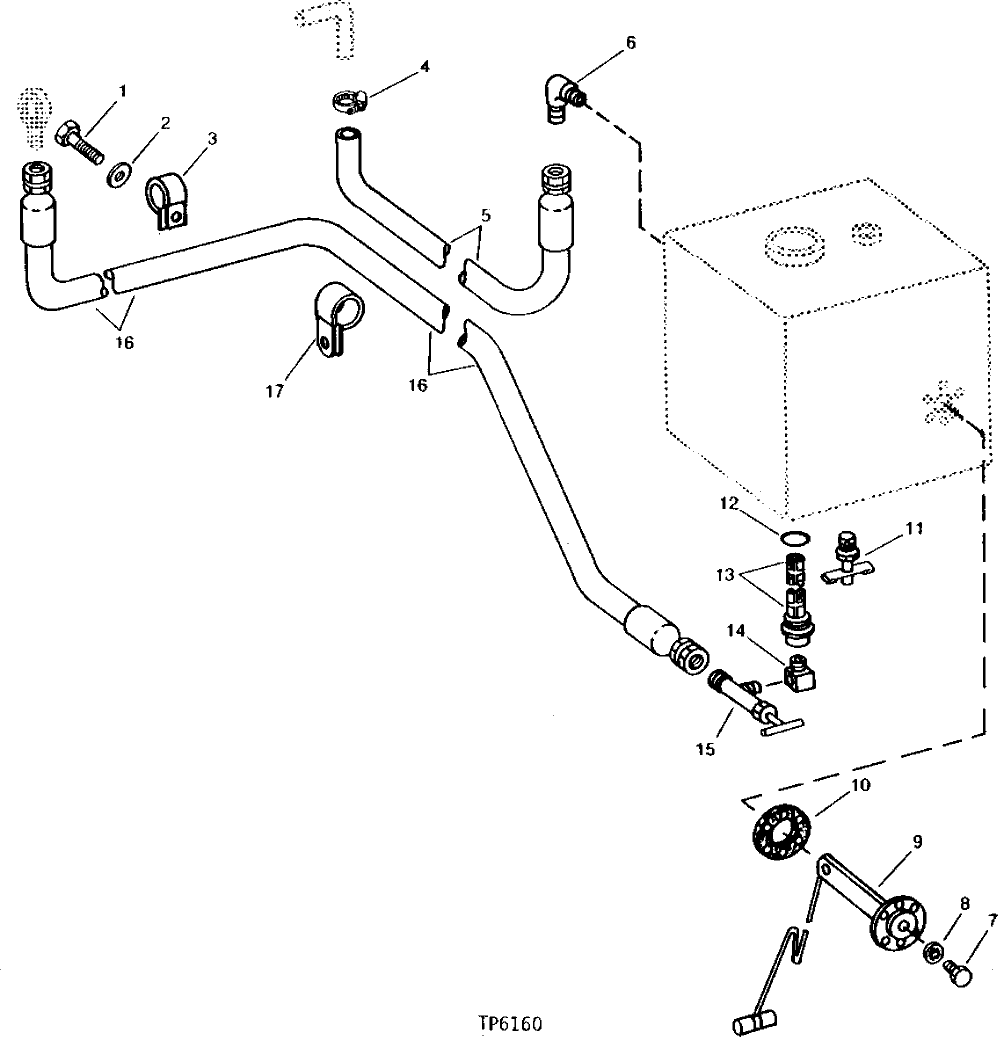

Запчасти John Deere 90A 4 - FUEL TANK FUEL HOSES 560 - ENGINE AUXILIARY SYSTEMS 5

1

19H1648

CAP SCREW

3/8" X 3/4"

1шт.

2

24H1305

WASHER

13/32" X 13/16" X 0.065"

1шт.

3

R46414

CLAMP

(SUB FOR AH78125, THIS APPLICATION)

1шт.

4

TY22464

CLAMP

(SUB FOR AR21836)

1шт.

5

HOSE

(MAKE FROM AT54481 BULK MATERIAL, CUT TO LENGTH)

1шт.

6

U45538

ELBOW FITTING

1шт.

7

21H1316

SCREW

0.190" X 1/2"

ARшт.

37H73

SCREW

ARшт.

8

12H295

LOCK WASHER

0.190"

ARшт.

9

AT48730

SENDER

1шт.

10

R27181

GASKET

1шт.

11

AT13740

DRAIN VALVE

1шт.

12

U12547

O-RING

(SUB FOR F3171R)

1шт.

13

T56056

STRAINER

1шт.

14

T11645

ELBOW FITTING

1шт.

15

AT48731

VALVE

1шт.

16

AT60356

HYDRAULIC HOSE - FABRICATE

9/16" X 2 800 MM (110-1/4") X 1/2"

1шт.

17

T43361

CLIP

2шт.
