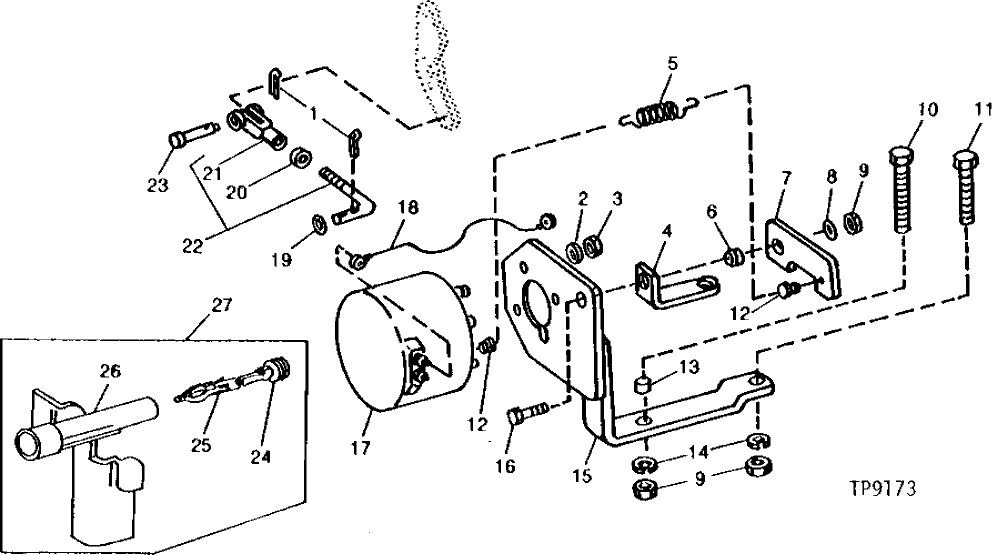

Запчасти John Deere 90A 1 - ELECTRIC FUEL SHUT-OFF CONTROL 515 - ENGINE AUXILIARY SYSTEMS 5

1

11M7005

COTTER PIN

1.600 X 10 MM

3шт.

2

24H1136

WASHER

11/32" X 11/16" X 0.065"

4шт.

3

14H611

NUT

5/16"

4шт.

4

R64142

ANGLE

1шт.

5

E79395

EXTENSION SPRING

(SUB FOR T60670) (ALSO ORDER (2) T67893)

1шт.

6

R35522

BUSHING

1шт.

7

T60669

ANCHOR

1шт.

8

R57696

WASHER

1шт.

9

14H812

NUT

3/8"

3шт.

10

19H1925

CAP SCREW

3/8" X 4-1/4"

1шт.

11

19H3175

CAP SCREW

3/8" X 3-5/8"

1шт.

12

T67893

GROMMET

2шт.

13

28H1519

WASHER

3/8" X .375"

1шт.

14

12H304

LOCK WASHER

3/8"

2шт.

15

AR79677

BRACKET

1шт.

16

19H3217

CAP SCREW

3/8" X 1-3/4"

1шт.

17

AT61722

SOLENOID

(SUB AT74838 AND RE12334)

1шт.

AT74838

SOLENOID

(FUEL SHUT OFF ELECTRIC SOLENOID)

1шт.

18

AT51249

WIRING LEAD

1шт.

19

24H1283

WASHER

7/32" X 1/2" X 0.049"

2шт.

20

14H631

NUT

0.190"

1шт.

21

L987T

YOKE

1шт.

22

AT61723

ROD

1шт.

23

L985T

PIN FASTENER

1шт.

24

SEAL

1шт.

25

PIN

1шт.

26

CONNECTOR

1шт.

27

RE12334

ELECTRICAL CONNECTOR ASSY

1шт.
