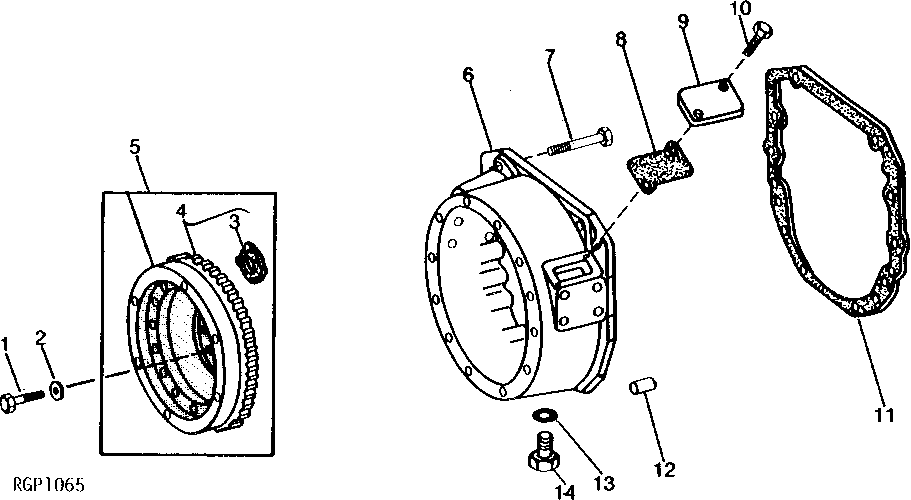

Запчасти John Deere 90A 2 - FLYWHEEL AND HOUSING (SAE 1) 433 - ENGINE 4

1

R50612

CAP SCREW

6шт.

2

R76126

WASHER

(SUB FOR R42364)

6шт.

3

R57480

GASKET

1шт.

4

R35047

GEAR

(SUB AR103044)

1шт.

AR103044

KIT

(MARKED R76000)

1шт.

5

AR79847

FLYWHEEL

(MARKED R64254) (SUB AR103318)

1шт.

AR103318

KIT

(MARKED R64254)

1шт.

6

R67990

HOUSING

(SUB FOR R63033) (SUB R121689 AND (2) H79910)

1шт.

R121689

HOUSING

1шт.

7

19H1405

CAP SCREW

3/4" X 2-1/2"

6шт.

8

R67989

GASKET

(SUB FOR R31494)

1шт.

9

R31493

COVER

1шт.

10

21H1318

SCREW

0.216" X 1/2"

2шт.

11

R100336

GASKET

(SUB FOR R57718 OR R77363)

1шт.

12

T26565

DOWEL PIN

(SUB FOR C1220R) (USE WITH R67990)

2шт.

H79910

DOWEL PIN

(USE WITH R121689)

2шт.

13

R29936

O-RING

1шт.

14

R36636

FITTING PLUG

1шт.
