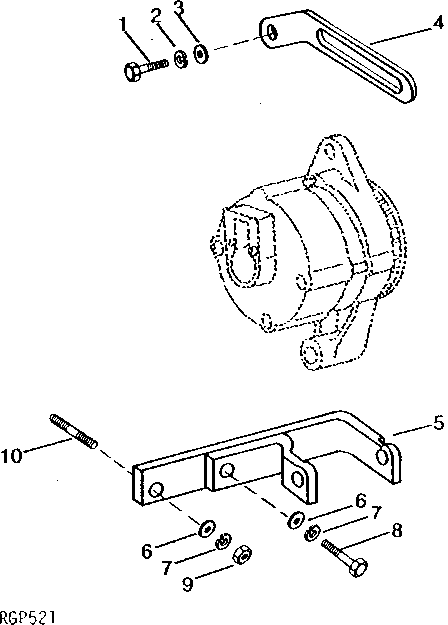

Запчасти John Deere 90A 2 - ALTERNATOR MOUNTING BRACKET 423 - ENGINE 4

1

19H2127

CAP SCREW

5/16" X 7/8"

1шт.

2

12H303

LOCK WASHER

5/16"

1шт.

3

24H1292

WASHER

11/32" X 3/4" X 0.120"

2шт.

4

R68478

STRAP

(SUB FOR R49593)

1шт.

5

AR85478

BRACKET

(SUB FOR AR78393)

1шт.

6

24H1323

WASHER

15/32" X 13/16" X 0.090", (NLA)

2шт.

7

12H293

LOCK WASHER

7/16"

2шт.

8

19H1978

CAP SCREW

7/16" X 1-1/2"

1шт.

9

14H1059

NUT

7/16", (SUB FOR A5236R)

1шт.

10

K3083R

STUD

1шт.
