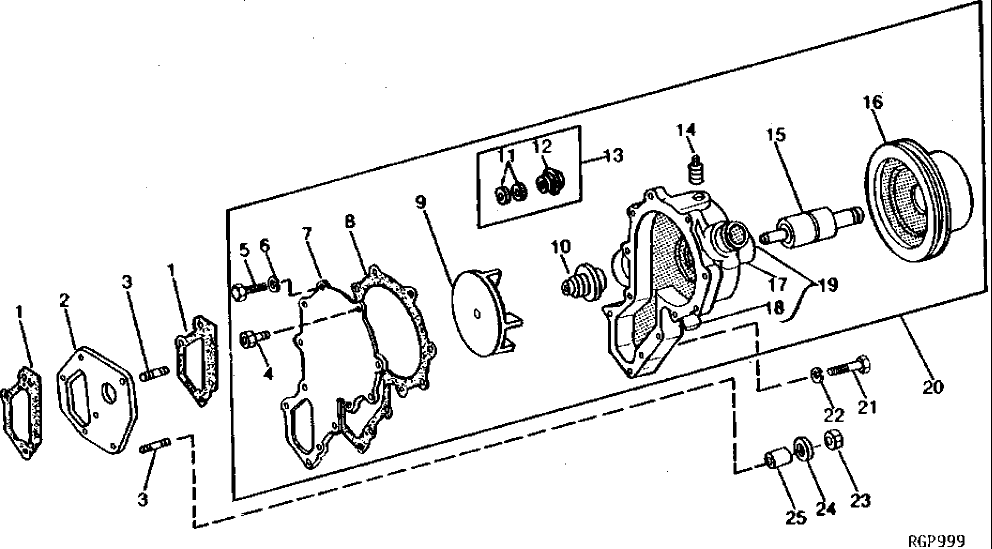

Запчасти John Deere 90A 2 - WATER PUMP 417 - ENGINE 4

1

R520542

GASKET

(SUB FOR R49495)

2шт.

2

R64755

PLATE

1шт.

3

R55395

STUD

(SUB FOR M47531)

2шт.

4

H78097

SCREW

(SUB FOR R49482)

1шт.

5

19H1731

CAP SCREW

3/8" X 1"

8шт.

19H2284

CAP SCREW

3/8" X 7/8", (USE WITH R100259)

8шт.

6

12H304

LOCK WASHER

3/8"

8шт.

7

R49420

COVER

1шт.

8

R69415

GASKET

(SUB FOR R49494)

1шт.

9

R135265

IMPELLER

(SUB FOR R49698) (ALSO ORDER RE68318, UNLESS PREVIOUSLY INSTALLED)

1шт.

10

RE68318

SEAL KIT

(SUB FOR AR101549 OR RE20776, APPL) (ALSO ORDER R135265, UNLESS PREVIOUSLY INSTALLED)

1шт.

11

AR41691

SEAL KIT

(SUB RE68318, APPL)

1шт.

12

T27261

SEAL

(SUB RE68318, APPL)

1шт.

13

AR62934

SEAL

(SUB RE68318, APPL)

1шт.

14

15H584

PIPE PLUG

1/2"

1шт.

15

AU43144

BALL BEARING

1шт.

16

R64155

PULLEY

1шт.

17

R48819

LINE

1шт.

18

R57503

TUBE

1шт.

19

AR70640

HOUSING

(MARKED R58705)

1шт.

20

SE500901

WATER PUMP

(REMANUFACTURED) (SUB FOR AR79692, AR85479, AR98556, RE70256 OR RE60373) (CONTAINS R135265)

1шт.

21

19H3708

CAP SCREW

3/8" X 2-5/8"

4шт.

22

12H304

LOCK WASHER

3/8", (NO LONGER REQUIRED WITH 19H3708)

4шт.

23

E55662

FLANGE NUT

2шт.

24

12H304

LOCK WASHER

3/8", (NO LONGER REQUIRED)

2шт.

25

M41645

BUSHING

2шт.
