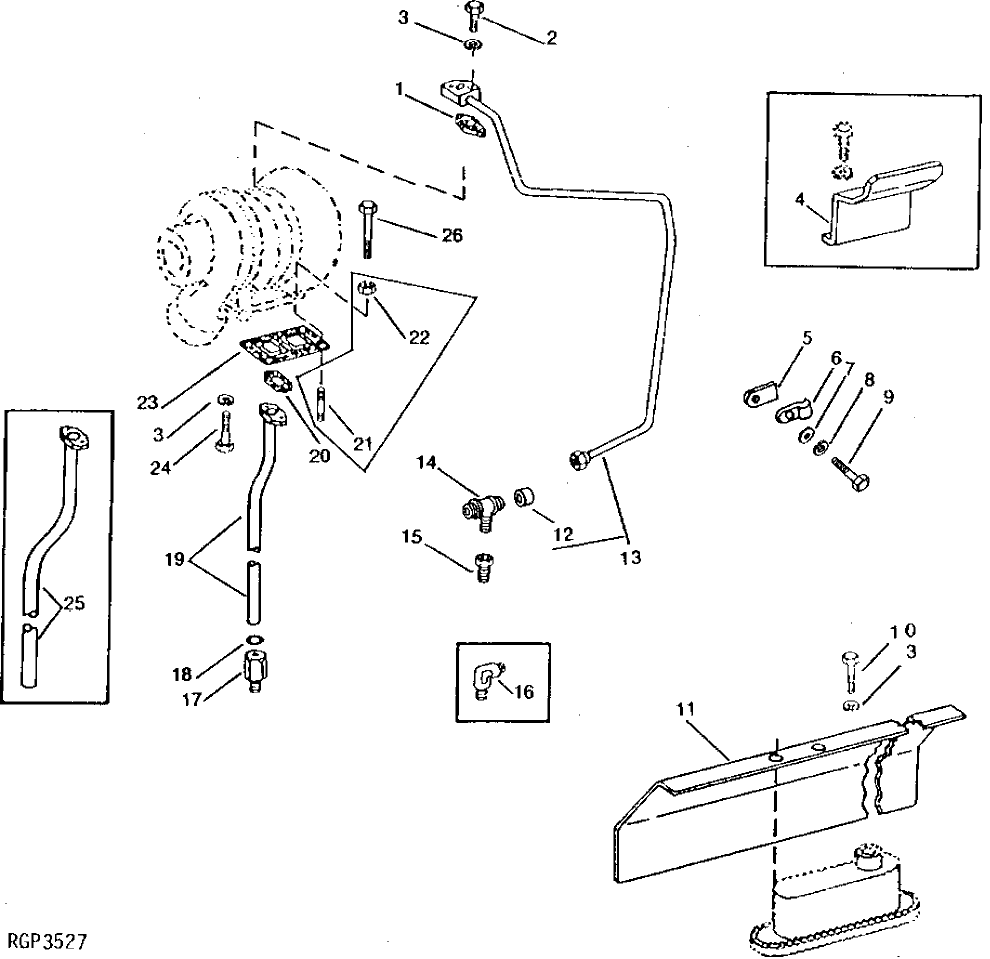

Запчасти John Deere 90A 4 - TURBOCHARGER OIL LINES 416 - ENGINE 4

1

R58222

GASKET

1шт.

2

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

3

12H304

LOCK WASHER

3/8", (NOT USED WITH E55662 OR 19H1731)

6шт.

4

R51134

HEAT SHIELD

1шт.

5

R27256

STRAP

(JD855, 992D-LC, JD862)

1шт.

6

R27590

CLAMP

(SUB FOR R27539 ON JD860B, JD762, JD850, 850LGP)

1шт.

7

24H1287

WASHER

9/32" X 5/8" X 0.065"

1шт.

8

12H304

LOCK WASHER

3/8"

1шт.

9

19H2284

CAP SCREW

3/8" X 7/8"

1шт.

10

19H2038

CAP SCREW

3/8" X 1/2", (SUB FOR R58221)

2шт.

11

AR102382

HEAT SHIELD

1шт.

12

R49671

WASHER

1шт.

13

RE14932

OIL LINE

(SUB FOR AR71911 OR AR88636 ON JD860 B) (JD762, JD860B, JD862, 992D-LC)

1шт.

AR82275

OIL LINE

(NOT ILLUSTRATED) (JD855, JD850, 850LGP)

1шт.

AR69212

OIL LINE

(NOT ILLUSTRATED) (JD890, 890A)

1шт.

14

R74742

TEE FITTING

1шт.

15

15H607

PIPE BUSHING

1/4"

1шт.

16

R125498

ELBOW FITTING

(SUB R74742 ON JD862, JD855, JD890) (SUB FOR R49673)

1шт.

17

R41285

ADAPTER FITTING

(JD855)

1шт.

R78008

LUBRICATION FITTING

(SUB FOR R41285) (JD855)

1шт.

R41285

ADAPTER FITTING

1шт.

18

R72328

O-RING

(SUB FOR R43780)

1шт.

19

AR103796

OIL LINE

(SUB FOR RE11044) (JD855, JD890, 890A, JD850, 850LGP)

1шт.

RE36930

OIL LINE

(992D-LC)

1шт.

20

R75691

GASKET

(SUB FOR R58221)

1шт.

21

R55078

STUD

4шт.

22

E55662

FLANGE NUT

4шт.

23

R49697

GASKET

1шт.

24

19H1731

CAP SCREW

3/8" X 1"

2шт.

25

AR94303

OIL LINE

(SUB RE36930) (SUB FOR AR72096) (JD862, JD860)

1шт.

AR94304

OIL LINE

(SUB AR103796) (SUB FOR AR69050) (JD855, JD890, 890A, JD850, 850LGP)

1шт.

26

R54500

SCREW

4шт.

24H1305

WASHER

13/32" X 13/16" X 0.065"

4шт.
