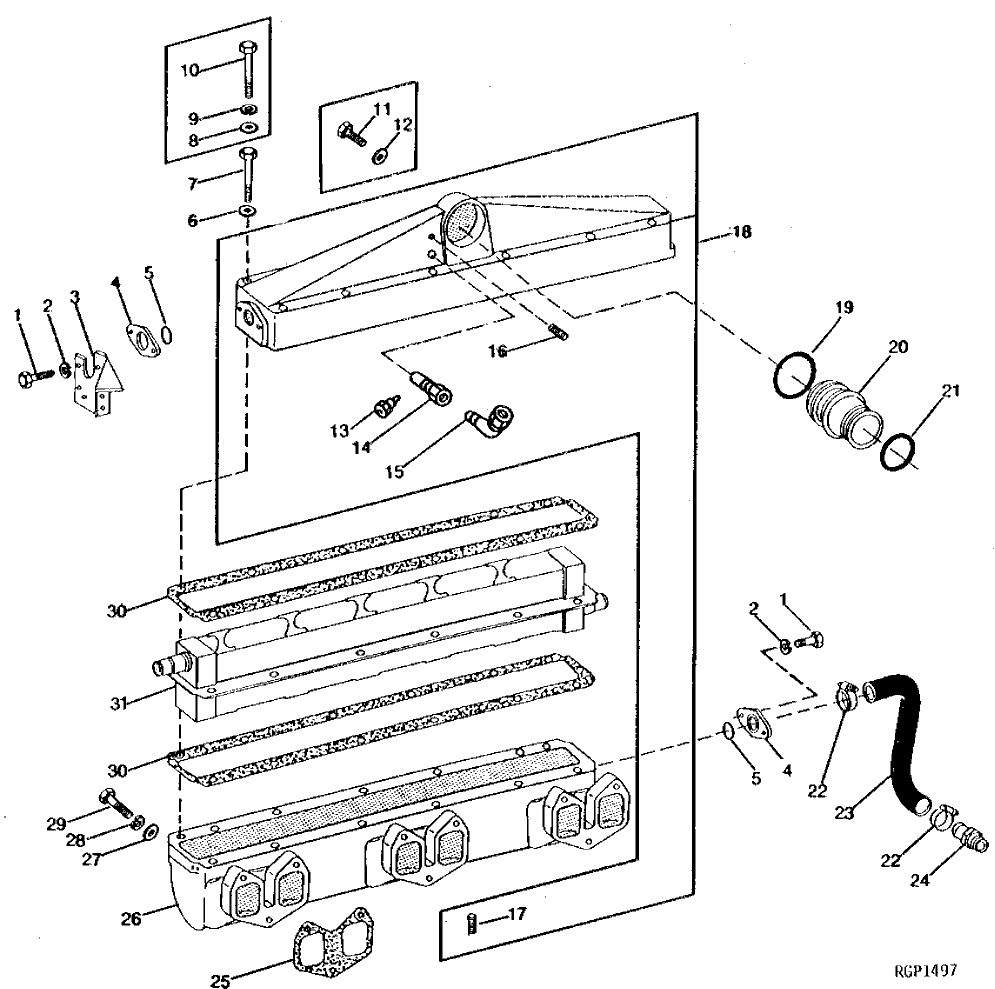

Запчасти John Deere 90A 2 - AFTERCOOLER AND INTAKE MANIFOLD 414 - ENGINE 4

1

19H1905

CAP SCREW

5/16" X 1"

4шт.

2

12H303

LOCK WASHER

5/16"

4шт.

3

R74006

SHIELD

(SUB FOR R59558)

1шт.

4

R49517

COVER

2шт.

5

R47153

O-RING

(SUB FOR R50420, APPL)

2шт.

6

M72490

WASHER

10.300 X 21 X 2.500 MM (0.406" X 0.827" X 0.098") (SUB FOR R70234 OR R42729)

12шт.

7

19H3404

CAP SCREW

3/8" X 4"

12шт.

8

24H1305

WASHER

13/32" X 13/16" X 0.065"

12шт.

9

12H304

LOCK WASHER

3/8"

12шт.

10

19H2228

CAP SCREW

3/8" X 4", (SUB 19H3404 AND M72490)

12шт.

11

19H2021

CAP SCREW

3/8" X 5/8"

1шт.

12

T11292

WASHER

1шт.

13

T155858

NOZZLE

(SUB FOR R28583)

1шт.

14

R47160

NOZZLE HOLDER

1шт.

15

RE21790

ELBOW FITTING

(SUB FOR AT25266)

1шт.

16

R104592

PIPE PLUG

1шт.

17

15H666

PIPE PLUG

3/8"

1шт.

18

R76266

COVER

(SUB FOR R57516 OR RE12734)

1шт.

19

R57517

O-RING

1шт.

20

R57518

COUPLING

1шт.

21

R49424

O-RING

1шт.

22

TY22467

CLAMP

(SUB FOR AR21839)

2шт.

23

R49473

HOSE

1шт.

24

R49518

FITTING

1шт.

25

R40088

GASKET

3шт.

26

R59071

INTAKE MANIFOLD

1шт.

27

R63489

WASHER

0.472" X 0.925" X 0.120"

9шт.

28

LOCK WASHER

(NO LONGER REQUIRED)

9шт.

29

19H2719

CAP SCREW

7/16" X 1-7/8"

9шт.

19H2719

CAP SCREW

7/16" X 1-7/8"

6шт.

19H2678

CAP SCREW

7/16" X 2-1/8"

3шт.

30

R53081

GASKET

2шт.

31

RE46441

INTERCOOLER

(SUB FOR AR73030 OR AR70420)

1шт.
