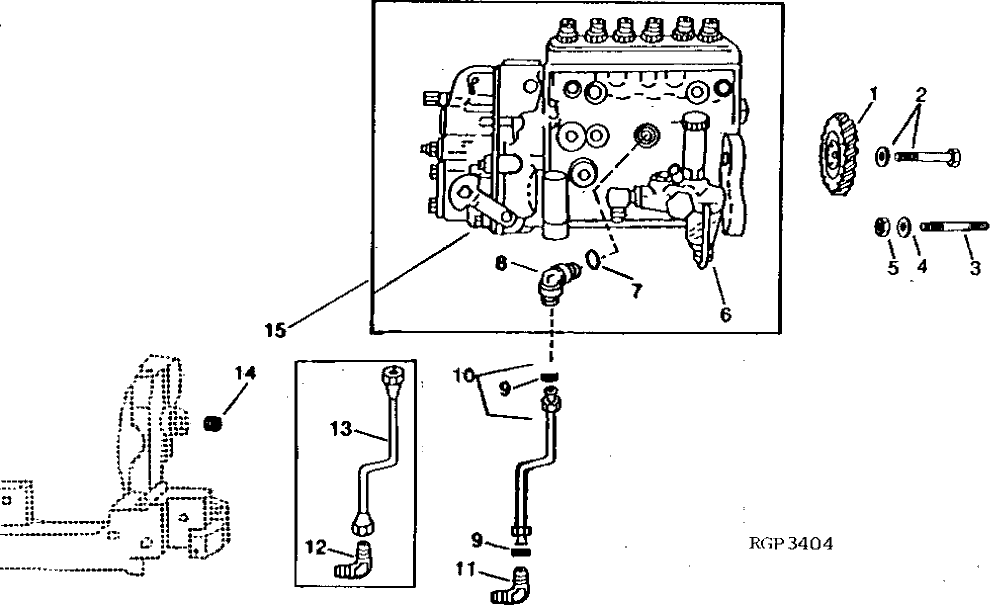

Запчасти John Deere 90A 8 - FUEL INJECTION PUMP AND OIL INLET LINE 413 - ENGINE 4

1

R66667

GEAR

(73 TEETH) (SUB R111388, R111387 CAM GEAR, (3) R63845 AND (3) 19H3483, APPL)

1шт.

R111388

GEAR

(42 TEETH) (USE WITH R111387)

1шт.

2

AR95772

CAP SCREW

(USE WITH R66667)

3шт.

R63845

WASHER

(USE WITH R111388)

3шт.

19H3483

CAP SCREW

(USE WITH R111388)

3шт.

3

R114130

STUD

(SUB FOR R55396, APPL)

4шт.

4

M72490

WASHER

(SUB FOR R42729)

4шт.

5

14H1090

NUT

3/8", (SUB FOR R32511 OR E55662, APPL)

4шт.

6

FUEL PUMP

(SUB AR89955)

1шт.

7

R79060

O-RING

(SUB FOR R26287)

1шт.

8

AR26746

ELBOW FITTING

1шт.

AR88903

ELBOW FITTING

1шт.

9

R67264

PACKING

2шт.

10

RE38186

LINE

(SUB FOR AR53491) (ALSO ORDER AR88903 AND T18012) (INCLUDES R67264)

1шт.

11

T18012

ELBOW FITTING

1шт.

12

R57641

ELBOW FITTING

1шт.

13

AR53491

FUEL LINE

(SUB RE38186) (ALSO ORDER AR88903 AND T18012)

1шт.

14

PIPE PLUG

(NOT USED THIS APPLICATION)

1шт.

15

AR105478

FUEL INJECTION PUMP

(A) (ROBERT BOSCH)

1шт.
