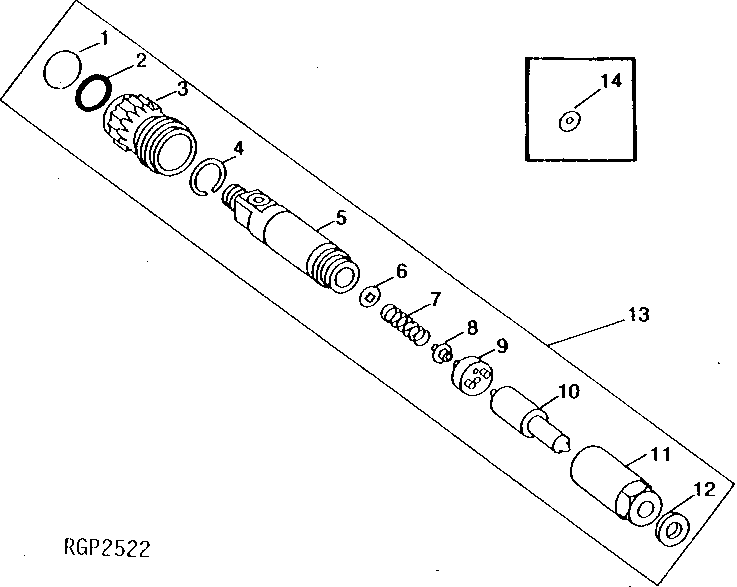

Запчасти John Deere 90A 1A - FUEL INJECTION NOZZLE 413 - ENGINE 4

1

R60277

SNAP RING

1шт.

2

R51603

O-RING

1шт.

3

R60279

TUBE NUT

1шт.

4

R60278

SNAP RING

1шт.

5

R60272

NOZZLE HOLDER

(SUB COMPLETE NOZZLE AND HOLDER)

1шт.

6

R83720

WASHER

1.02 MM (.0402")

1шт.

R83721

WASHER

1.08 MM (.0425")

1шт.

R83722

WASHER

1.12 MM (.0441")

1шт.

R83723

WASHER

1.18 MM (.0465")

1шт.

R83724

WASHER

1.22 MM (.0480")

1шт.

R83725

WASHER

1.28 MM (.0504")

1шт.

R83726

WASHER

1.30 MM (.0512")

1шт.

R83727

WASHER

1.38 MM (.0543")

1шт.

R83728

WASHER

1.42 MM (.0559")

1шт.

R83729

WASHER

1.48 MM (.0583")

1шт.

R83730

WASHER

1.50 MM (.0591")

1шт.

R83731

WASHER

1.58 MM (.0622")

1шт.

R83732

WASHER

1.60 MM (.0630")

1шт.

R83733

WASHER

1.68 MM (.0661")

1шт.

R83734

WASHER

1.70 MM (.0669")

1шт.

R83735

WASHER

1.78 MM (.0701")

1шт.

R83736

WASHER

1.82 MM (.0717")

1шт.

R83737

WASHER

1.88 MM (.0740")

1шт.

R83738

WASHER

1.90 MM (.0748")

1шт.

R83739

WASHER

1.98 MM (.0780")

1шт.

7

R60273

SPRING

1шт.

8

R60274

SEAT

1шт.

9

R60275

PLATE

1шт.

10

RE10947

NOZZLE

(6 X 0.285)

1шт.

11

R60276

NUT

1шт.

12

R64840

WASHER

1шт.

13

AR103189

INJECTION NOZZLE

6шт.

SE500097

INJECTION NOZZLE

(REMANUFACTURED FOR AR103189) (PKG OF 6)

1шт.

SE501106

INJECTION NOZZLE

(REMANUFACTURED FOR AR103189) (PKG OF 1)

ARшт.

14

R60280

WASHER

0.99 MM (.039") (SUB R83720)

1шт.

R60281

WASHER

1.04 MM (.041") (SUB R83721)

1шт.

R60282

WASHER

1.09 MM (.043") (SUB R83722)

1шт.

R60283

WASHER

1.14 MM (.045") (SUB R83723)

1шт.

R60284

WASHER

1.19 MM (.047") (SUB R83724)

1шт.

R60285

WASHER

1.24 MM (.049") (SUB R83725)

1шт.

R60286

WASHER

1.29 MM (.051") (SUB R83726)

1шт.

R60287

WASHER

1.34 MM (.053") (SUB R83727)

1шт.

R60288

WASHER

1.39 MM (.055") (SUB R83728)

1шт.

R60289

WASHER

1.44 MM (.057") (SUB R83729)

1шт.

R60290

WASHER

1.49 MM (.059") (SUB R83730)

1шт.

R60291

WASHER

1.54 MM (.061") (SUB R83731)

1шт.

R60292

WASHER

1.60 MM (.063") (SUB R83732)

1шт.

R60293

WASHER

1.65 MM (.065") (SUB R83733)

1шт.

R60294

WASHER

1.70 MM (.067") (SUB R83734)

1шт.

R60295

WASHER

1.75 MM (.069") (SUB R83735)

1шт.

R60296

WASHER

1.80 MM (.071") (SUB R83736)

1шт.

R60297

WASHER

1.85 MM (.073") (SUB R83737)

1шт.

R60298

WASHER

1.90 MM (.075") (SUB R83738)

1шт.

R60299

WASHER

1.95 MM (.077") (SUB R83739)

1шт.
