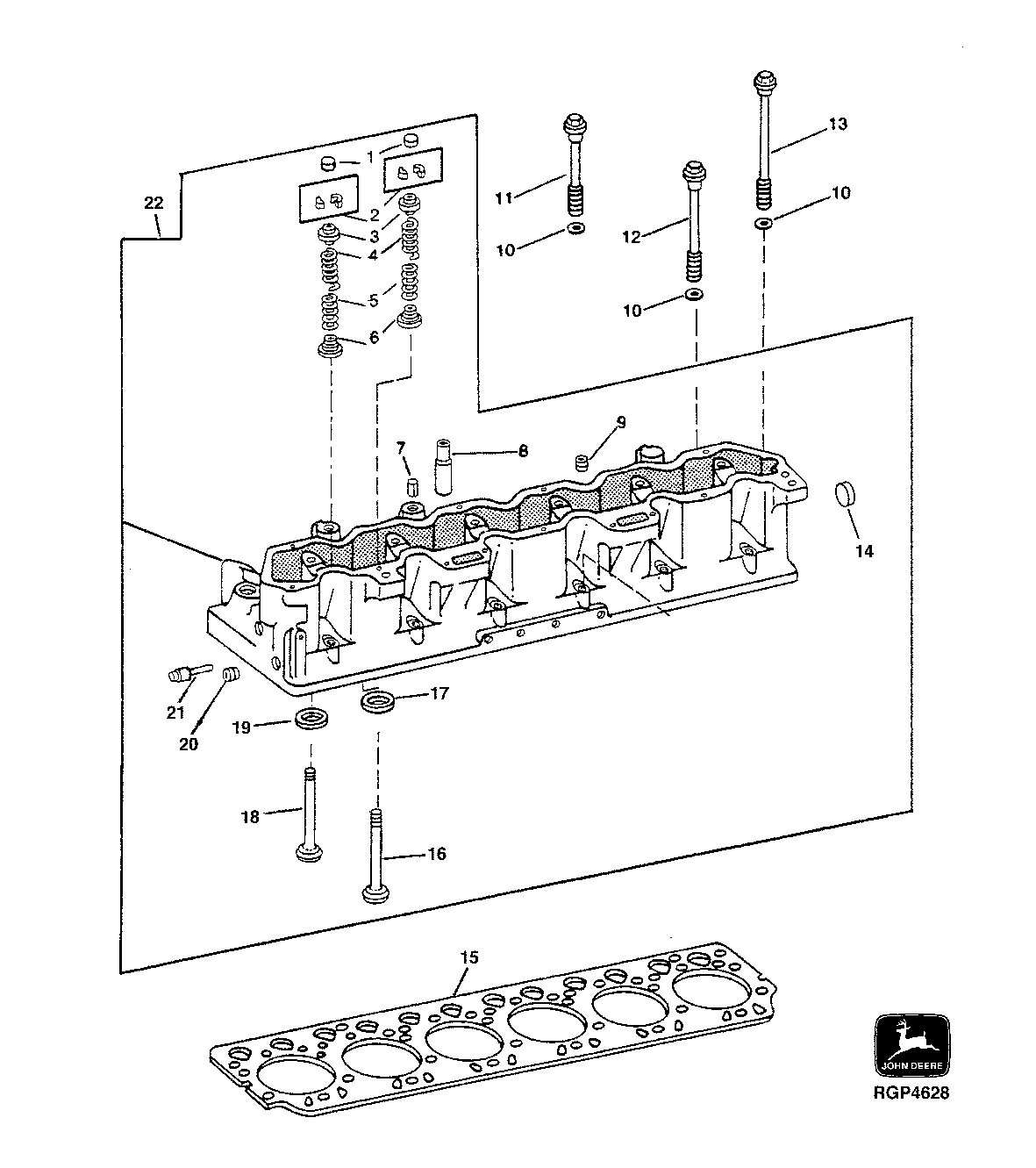

Запчасти John Deere 90A 8 - REPLACEMENT CYLINDER HEAD AND VALVES 409 - ENGINE 4

1

R40366

CAP

12шт.

2

R35431

LOCK

24шт.

3

R49283

CAP

12шт.

4

R49571

SPRING

12шт.

5

R49569

SPRING

12шт.

6

R81086

ROTATOR

12шт.

7

34H387

SPRING PIN

3/16" X 3/4"

1шт.

8

R53192

BUSHING

12шт.

9

RE57836

PIPE PLUG

1/2", (SUB FOR 15H624)

5шт.

10

R70268

WASHER

26шт.

11

R80575

CAP SCREW

6шт.

12

R80576

CAP SCREW

17шт.

13

R80577

CAP SCREW

3шт.

14

AR80294

PLUG

1шт.

15

RE34009

ENGINE CYLINDER HEAD GASKET

1шт.

16

R63982

EXHAUST VALVE

(30°)

6шт.

17

R60537

VALVE SEAT INSERT

(30°) STD (EXHAUST)

6шт.

R82450

VALVE SEAT INSERT

0.25 MM (.010") OS (EXHAUST)

6шт.

18

R75690

INTAKE VALVE

(30°)

6шт.

19

R59894

VALVE SEAT INSERT

STD (INTAKE)

6шт.

R60202

VALVE SEAT INSERT

0.25 MM (.010") OS (INTAKE)

ARшт.

20

15H690

PIPE PLUG

3/4"

2шт.

21

AT107509

PLUG

2шт.

22

RE60523

CYLINDER HEAD

(MARKED R121676)

1шт.
