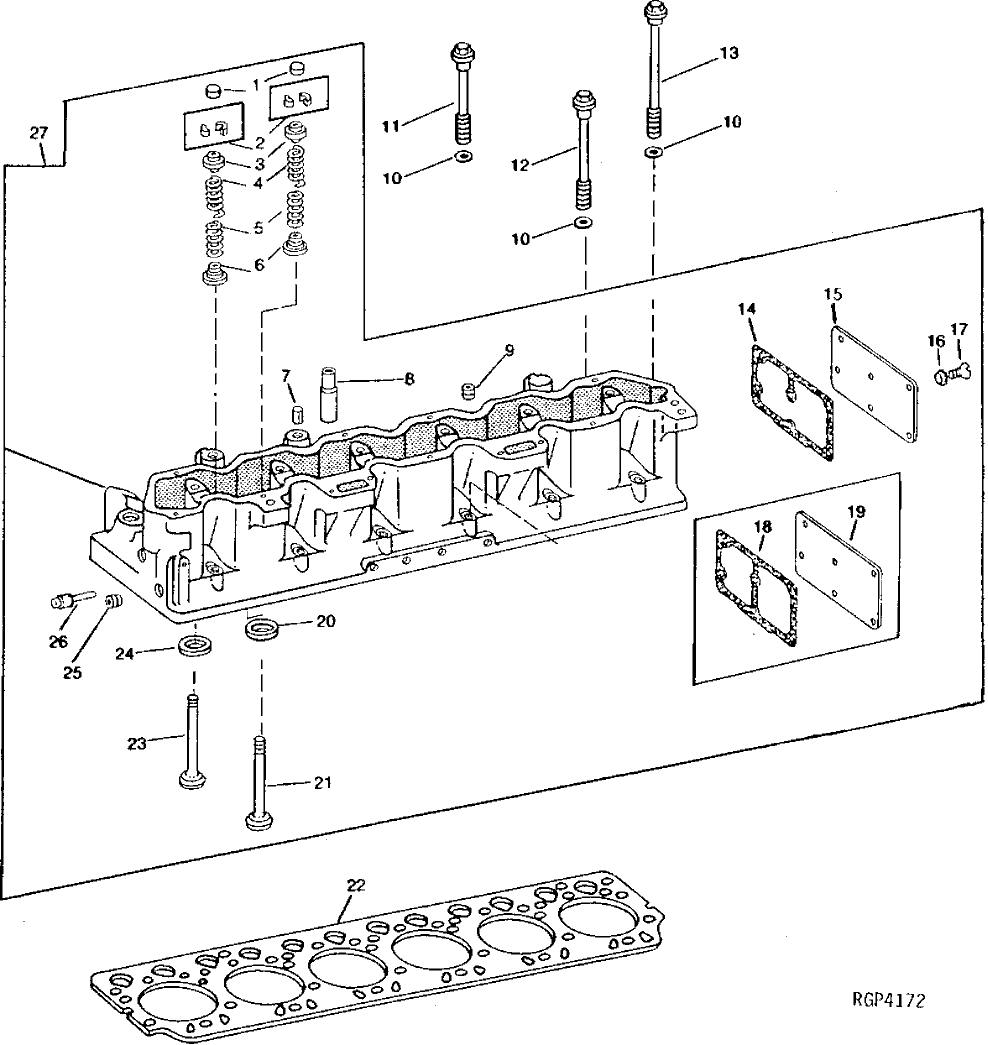

Запчасти John Deere 90A 6 - CYLINDER HEAD AND VALVES 409 - ENGINE 4

1

R40366

CAP

12шт.

2

R35431

LOCK

24шт.

3

R49283

CAP

12шт.

4

R49571

SPRING

12шт.

5

R49569

SPRING

12шт.

6

R81086

ROTATOR

12шт.

7

34H387

SPRING PIN

3/16" X 3/4"

1шт.

8

R53192

BUSHING

12шт.

9

RE57836

PIPE PLUG

1/2", (SUB FOR 15H624)

5шт.

10

R70268

WASHER

25шт.

11

R80575

CAP SCREW

6шт.

12

R80576

CAP SCREW

17шт.

13

R80577

CAP SCREW

3шт.

14

R120293

GASKET

1шт.

15

R120292

COVER

1шт.

16

12H324

WASHER

6шт.

17

N61345

SCREW

6шт.

18

R105027

GASKET

(SUB R120292, R120293 AND (6) 12H324)

1шт.

19

R105026

COVER

(SUB R120292, R120293 AND (6) 12H324)

1шт.

20

R60537

VALVE SEAT INSERT

STD (EXHAUST)

6шт.

R82450

VALVE SEAT INSERT

0.25 MM (.010") OS (EXHAUST)

6шт.

21

R63982

EXHAUST VALVE

6шт.

22

RE34009

ENGINE CYLINDER HEAD GASKET

1шт.

23

R75690

INTAKE VALVE

6шт.

24

R59894

VALVE SEAT INSERT

STD (INTAKE)

6шт.

R60202

VALVE SEAT INSERT

0.25 MM (.010") OS (INTAKE)

ARшт.

25

15H690

PIPE PLUG

3/4"

2шт.

26

AT107509

PLUG

6.3 MM

2шт.

27

RE48460

CYLINDER HEAD

(MARKED R100259) (SUB RE60523)

1шт.

RE56479

CYLINDER HEAD

(MARKED R100259) (SUB RE60523)

1шт.
