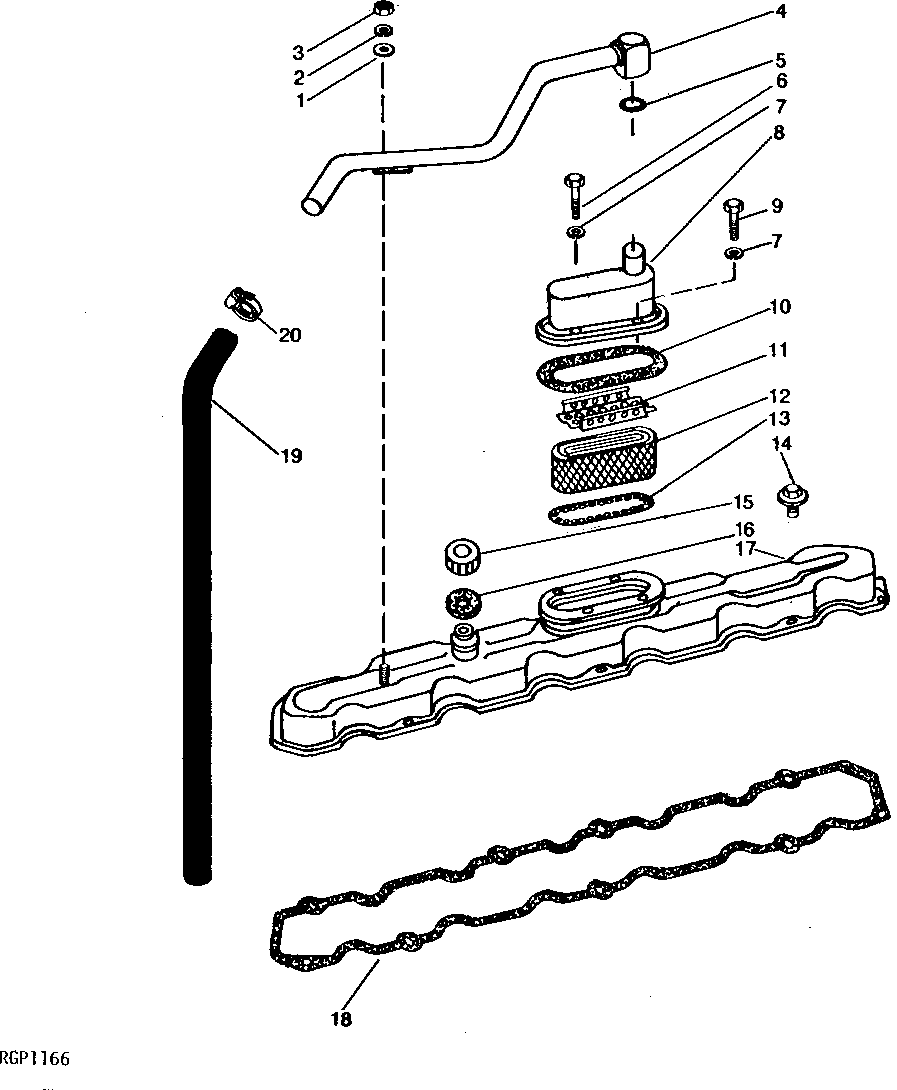

Запчасти John Deere 90A 2 - ROCKER ARM COVER AND CRANKCASE VENT 408 - ENGINE 4

1

24H1287

WASHER

9/32" X 5/8" X 0.065"

1шт.

2

12H302

LOCK WASHER

1/4", (NO LONGER REQUIRED)

1шт.

3

14H786

NUT

1/4"

1шт.

4

AR102381

TUBE

1шт.

5

R56463

O-RING

(SUB FOR R47147)

1шт.

6

19H1900

CAP SCREW

5/16" X 3/4"

2шт.

7

12H303

LOCK WASHER

5/16", (NO LONGER REQUIRED)

4шт.

8

AR102380

COVER

1шт.

9

19H1813

CAP SCREW

5/16" X 5/8"

4шт.

19H1813

CAP SCREW

5/16" X 5/8"

2шт.

10

R49492

GASKET

(SUB FOR AR21837)

1шт.

11

R49690

DEFLECTOR

1шт.

12

R49692

FILTER ELEMENT

1шт.

13

R49691

ISOLATOR

1шт.

14

AR103811

SCREW WITH WASHER

(SUB FOR AR45530)

9шт.

AR100124

SCREW WITH WASHER

9шт.

15

T20294

CAP

1шт.

16

T20328

GASKET

1шт.

17

AR102379

COVER

1шт.

18

R74365

GASKET

(SUB FOR R49867)

1шт.

19

R99794

HOSE

(SUB FOR R65061) (JD862-B, JD862, JD860-B, JD855, JD890, JD890A, JD850, 850LGP) (SUB TY22450)

1шт.

R100541

HOSE

(SUB FOR R97873) (992D-LC) (MAKE FROM TY22450)

1шт.

TY22450

BULK HOSE

(BULK)

ARшт.

20

TY22467

CLAMP

(SUB FOR AR21837 OR AR21839)

1шт.

TY24446

ADHESIVE

(SUB FOR AR31790)

1шт.
