Запчасти John Deere 90A 10 - ENGINE OIL PAN 407 - ENGINE 4

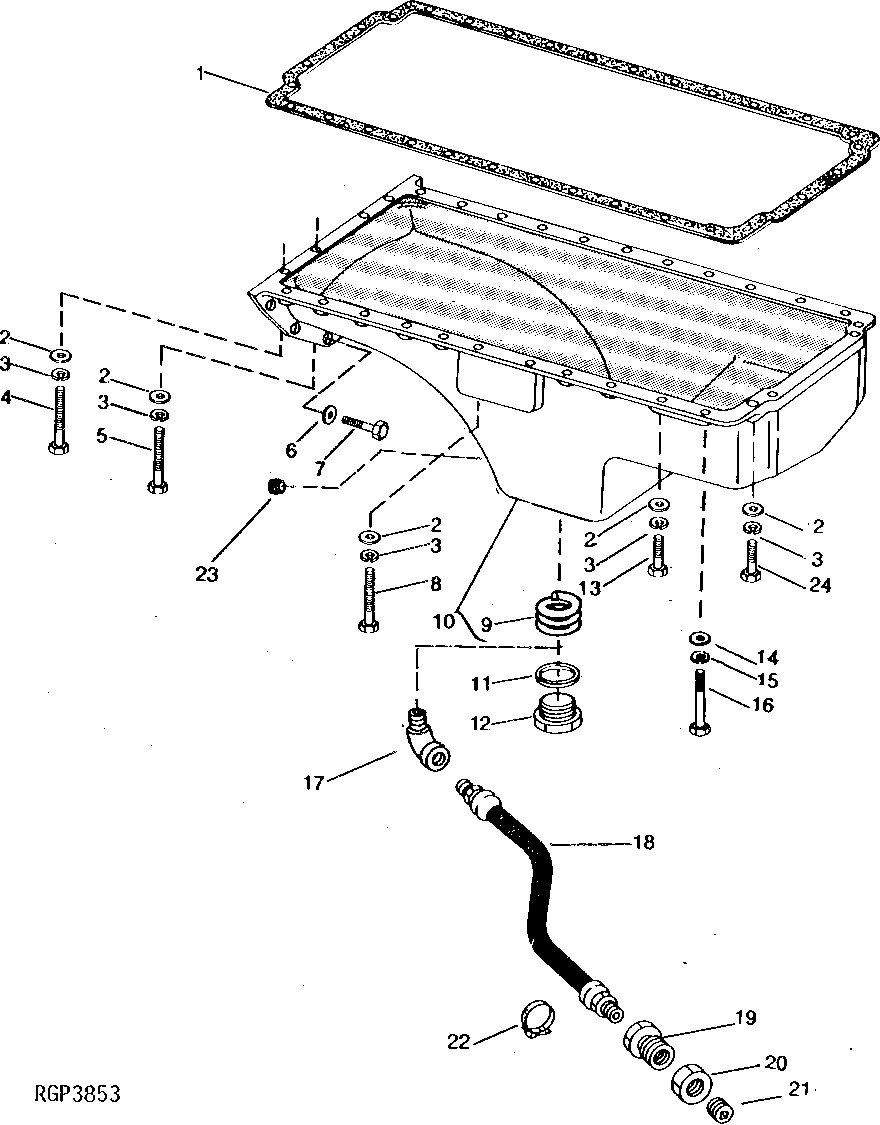

Схема запчастей John Deere 90A - 10 - ENGINE OIL PAN 407 - ENGINE 4

Артикул

Название

Примечание

Количество

1

RE509291

GASKET

(THICK) (SUB FOR R64828)

1шт.

2

24H1305

WASHER

13/32" X 13/16" X 0.065"

28шт.

3

12H331

LOCK WASHER

3/8"

28шт.

12H304

LOCK WASHER

3/8"

28шт.

4

08H4451

CAP SCREW

3/8" X 6-1/2"

2шт.

19H3563

CAP SCREW

3/8" X 6-5/8", (GR. G)

2шт.

5

08H4109

CAP SCREW

3/8" X 7-1/2", (USE WITH R46577)

2шт.

19H3564

CAP SCREW

3/8" X 7-5/8", (GR. G) (USE WITH R73791)

2шт.

R121240

CAP SCREW

(USE WITH R110212)

2шт.

6

R78019

WASHER

(SUB FOR T21397)

6шт.

7

19H2431

CAP SCREW

3/4" X 2-1/4", (SUB FOR 19H1782)

6шт.

8

19H2205

CAP SCREW

3/8" X 6"

2шт.

19H3565

CAP SCREW

3/8" X 6-1/8", (GR. G)

2шт.

9

R79480

INSERT

(OIL PAN INSERT) (SUB FOR RE15390)

1шт.

10

R63026

OIL PAN

1шт.

11

A4827R

WASHER

1шт.

12

R26727

DRAIN PLUG

1шт.

13

19H1800

CAP SCREW

3/8" X 1-1/2"

22шт.

19H3267

CAP SCREW

3/8" X 1-5/8"

22шт.

19H3267

CAP SCREW

3/8" X 1-5/8"

20шт.

14

24H1756

WASHER

1/2" X 1" X 0.060"

2шт.

15

12H292

LOCK WASHER

1/2"

2шт.

12H301

LOCK WASHER

1/2"

2шт.

16

19H2473

CAP SCREW

1/2" X 1-3/4", (SUB FOR 19H1777)

2шт.

19H2473

CAP SCREW

1/2" X 1-3/4"

2шт.

17

15H602

ELBOW FITTING

(JD862B)

1шт.

18

RE45442

HOSE

(558 MM LONG) (SUB FOR AU40697 OR AU10862, THIS APPLICATION) (JD862, JD862-B, JD860-B)

1шт.

19

R56407

FITTING

(JD862, JD862-B, JD860-B)

1шт.

20

14H873

NUT

1-1/4" (JD862, JD862-B, JD860-B)

1шт.

21

RE57836

PIPE PLUG

1/2" (JD862, JD862-B, JD860-B) (SUB FOR T20659 OR 15H624)

1шт.

22

R44302

TIE BAND

(JD862, JD862-B, JD860-B)

1шт.

23

RE57836

PIPE PLUG

1/2", (SUB FOR 15H624) (JD855, JD890, JD850, 850LGP, 890A)

1шт.

24

19H3485

CAP SCREW

3/8" X 2"

2шт.

Выбрано товаров: 33
