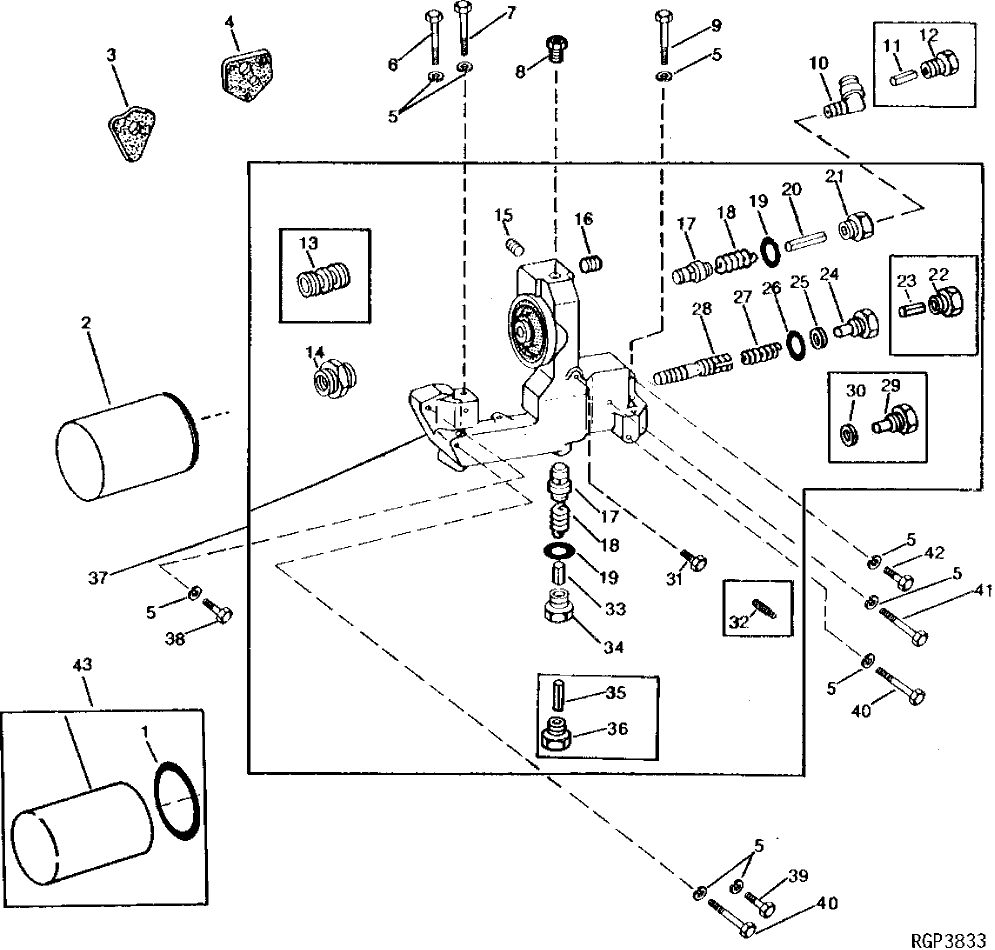

Запчасти John Deere 90A 6 - OIL PRESSURE REGULATING HOUSING AND FILTER 407 - ENGINE 4
№
Артикул
Название
Примечание
Количество
1
R43660
PACKING
(USE WITH AR43261, AR98329 OR RE57394)
1шт.
3
R49485
GASKET
1шт.
4
R49484
GASKET
1шт.
5
12H304
LOCK WASHER
3/8"
10шт.
6
19H2639
CAP SCREW
3/8" X 3-3/8"
1шт.
7
19H2345
CAP SCREW
3/8" X 5-1/2"
1шт.
8
15H607
PIPE BUSHING
3/4" X 1/4"
1шт.
9
19H1944
CAP SCREW
(A) 3/8" X 2-3/4"
2шт.
19H1944
CAP SCREW
(A) 3/8" X 2-3/4"
1шт.
10
R67364
ELBOW FITTING
1шт.
11
R43429
FITTING
(USE WITH AR43261)
1шт.
12
R104621
ADAPTER FITTING
(USE WITH AR98329) (SUB FOR R73913)
1шт.
13
RE57836
PIPE PLUG
1/2", (SUB FOR AR72319 OR 15H624)
3шт.
14
15H690
PIPE PLUG
3/4", (SUB FOR AR72318)
5шт.
15
R49464
VALVE
BYPASS
2шт.
16
R26151
SPRING
2шт.
18
34H366
SPRING PIN
1/2" X 1"
1шт.
19
R67319
ADAPTER FITTING
1шт.
20
R71483
DRAIN PLUG
(SUB AR105510, APPL)
1шт.
21
34H393
PIN FASTENER
7/16" X 1-1/8"
1шт.
22
AR105510
DRAIN PLUG
1шт.
23
U40750
WASHER
4шт.
25
R43548
SPRING
1шт.
26
R43428
VALVE
PRESSURE REGULATING, (SUB R77003)
1шт.
R77003
VALVE
PRESSURE REGULATING
1шт.
27
RE10834
DRAIN PLUG
(SUB FOR R43425)
1шт.
28
R43424
WASHER
1шт.
29
R55233
PIPE PLUG
1шт.
R104592
PIPE PLUG
1шт.
30
R71483
DRAIN PLUG
(SUB R49465 AND 34H313, APPL)
1шт.
31
34H393
PIN FASTENER
7/16" X 1-1/8"
1шт.
32
R86875
FITTING
(SUB R49465 AND 34H313, APPL)
1шт.
33
AR90475
HOUSING
(MARKED R48349 OR R68157) (SUB RE12770) (SUB FOR AR67461)
1шт.
AR94082
HOUSING
(MARKED R71485) (SUB RE12770)
1шт.
RE12770
KIT
(MARKED R71485 OR R77939)
1шт.
34
19H2128
CAP SCREW
3/8" X 3"
1шт.
35
19H1854
CAP SCREW
3/8" X 3-3/4"
2шт.
36
19H1819
CAP SCREW
3/8" X 2-1/8"
1шт.
37
19H2023
CAP SCREW
3/8" X 3-1/4"
1шт.
38
19H3483
CAP SCREW
3/8" X 1-1/8"
1шт.
39
AR43634
OIL FILTER
(B) (MARKED AR43261 OR AR43634)
1шт.
40
34H313
SPRING PIN
1/4" X 1-1/8"
1шт.
41
R49465
DRAIN PLUG
1шт.
Выбрано товаров: 48
