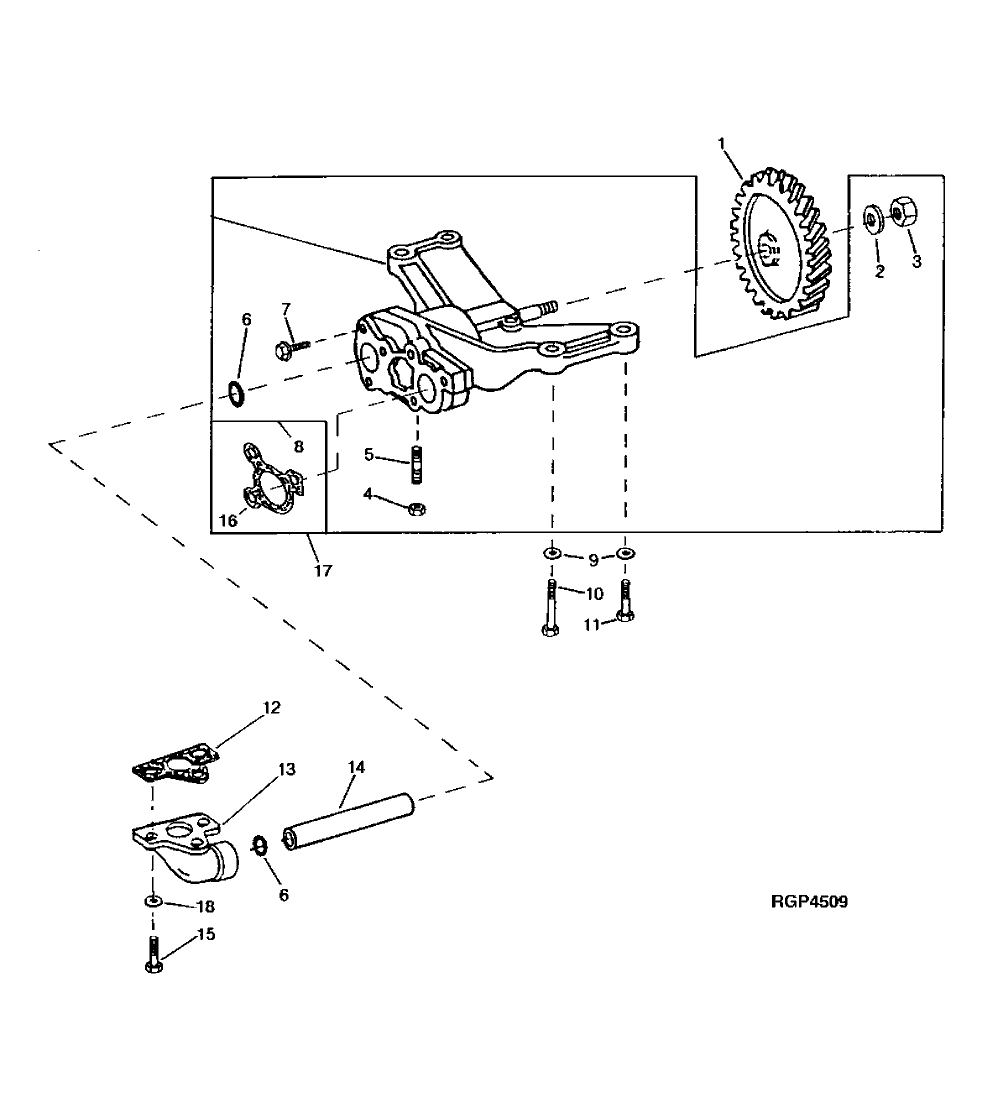

Запчасти John Deere 90A 3A - REPLACEMENT ENGINE OIL PUMP 407 - ENGINE 4

1

R62938

GEAR

1шт.

2

T21242

WASHER

1шт.

3

14H826

NUT

1/2"

1шт.

4

14H785

NUT

5/16"

1шт.

5

22H1040

SET SCREW

5/16" X 1-1/4"

1шт.

6

R71732

O-RING

2шт.

7

R104628

SCREW

(COVER TO OIL PUMP HSG)

3шт.

R104628

SCREW

2шт.

8

RE44118

OIL PUMP

(MARKED R62946) (SUB RE60622)

1шт.

9

R57696

WASHER

4шт.

10

19H2549

CAP SCREW

3/8" X 1-7/8"

2шт.

11

19H3219

CAP SCREW

3/8" X 1-3/8"

2шт.

12

R69418

GASKET

1шт.

13

R62948

ELBOW FITTING

1шт.

14

R62947

TUBE

1шт.

15

19H3483

CAP SCREW

3/8" X 1-1/8"

3шт.

16

R100569

GASKET

1шт.

17

RE60622

OIL PUMP

(MARKED R62946 OR R124328) (SUB SE501063, THIS APPLICATION) (SUB FOR AR94479, AR96193, AR99344 OR RE44118, APPL)

1шт.

SE501063

OIL PUMP

(MARKED R62946 OR R124328) (REMANUFACTURED) CALL 1-888-697-3626

1шт.

RE507076

OIL PUMP

(MARKED R504028) (SUB SE500877, THIS APPLICATION)

1шт.

SE500877

OIL PUMP

(REMANUFACTURED) CALL 1-888-697-3626

1шт.

18

M72490

WASHER

3шт.

R500642

BUSHING

(USE W/OIL PUMP) (SUB FOR R62930, THIS APPLICATION)

2шт.
