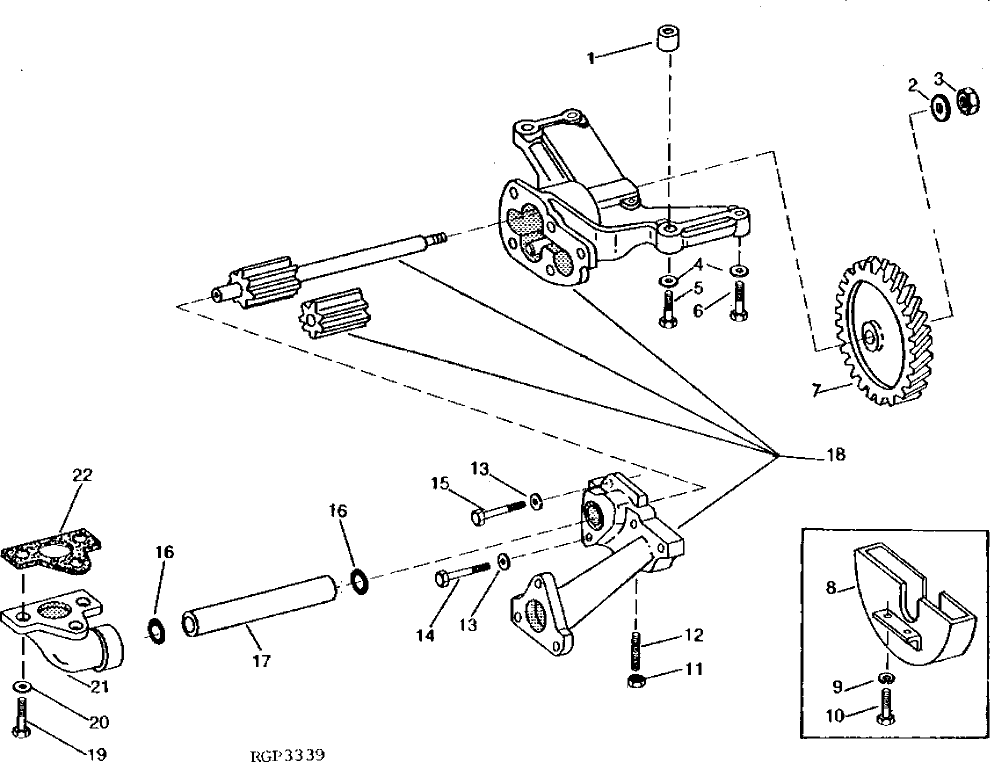

Запчасти John Deere 90A 2 - ENGINE OIL PUMP (CRANKSHAFT DRIVEN) 407 - ENGINE 4

1

R500642

BUSHING

(SUB FOR R62930, THIS APPLICATION)

2шт.

2

T21242

WASHER

1шт.

3

14H826

NUT

1/2"

1шт.

4

R57696

WASHER

4шт.

5

19H2549

CAP SCREW

3/8" X 1-7/8"

2шт.

6

19H3219

CAP SCREW

3/8" X 1-3/8"

2шт.

7

R62938

GEAR

1шт.

8

SHIELD

(NLA)

1шт.

9

LOCK WASHER

(NOT REQUIRED)

2шт.

10

CAP SCREW

(NOT REQUIRED)

2шт.

11

14H785

NUT

5/16"

1шт.

12

22H1040

SET SCREW

5/16" X 1-1/4"

1шт.

13

M72490

WASHER

(SUB FOR R70234 OR R42729)

5шт.

14

19H2733

CAP SCREW

3/8" X 2-3/8"

2шт.

15

19H3217

CAP SCREW

3/8" X 1-3/4"

3шт.

16

R71732

O-RING

2шт.

17

R62947

TUBE

1шт.

18

AR94479

OIL PUMP

(SUB SE501063 AND RE43167, THIS APPLICATION) (MARKED R62946 OR R124328)

1шт.

AR99344

OIL PUMP

(MARKED R62946 OR R124328) (SUB FOR AR96193) (SUB SE501063 AND RE43167, THIS APPLICATION)

1шт.

SE501063

OIL PUMP

(MARKED R62946 OR R124328) (REMANUFACTURED) CALL 1-888-697-3626

1шт.

19

19H3483

CAP SCREW

3/8" X 1-1/8"

3шт.

20

M72490

WASHER

(SUB FOR R70234 OR R42729)

3шт.

21

R62948

ELBOW FITTING

1шт.

22

R69418

GASKET

1шт.
